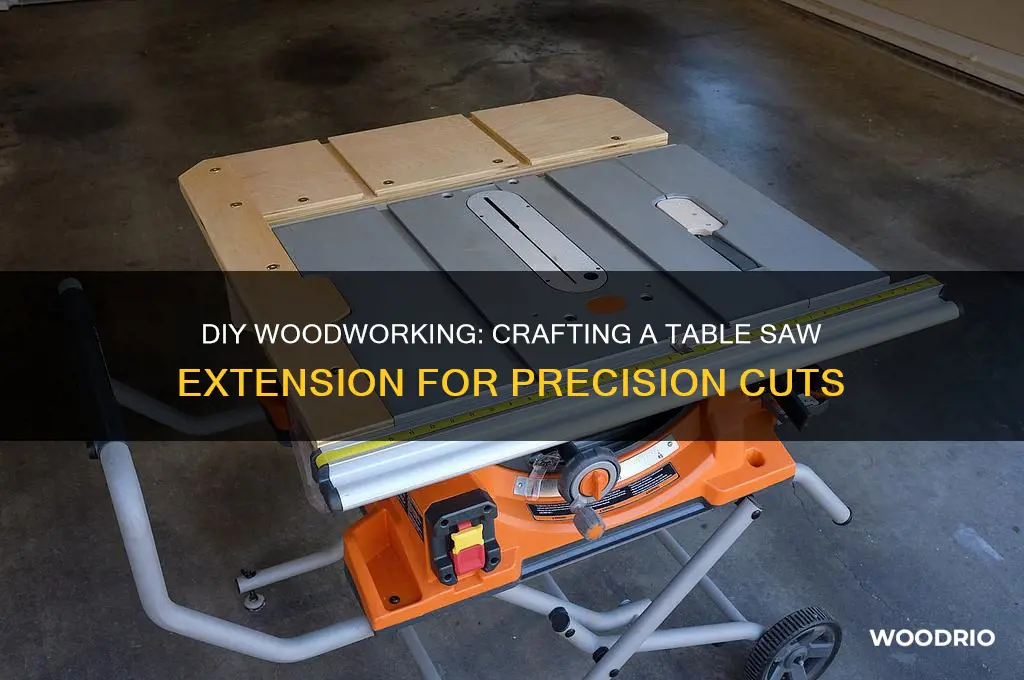

Creating a wood table saw extension is a practical and cost-effective way to expand your workspace and enhance the functionality of your table saw. This DIY project allows you to handle larger materials with ease, improve accuracy, and maintain a safer working environment. By using basic woodworking tools and materials such as plywood, hardwood, and fasteners, you can customize the extension to fit your specific saw and workspace requirements. Whether you're a hobbyist or a professional woodworker, building a table saw extension not only increases efficiency but also adds a personalized touch to your workshop setup. With careful planning, precise measurements, and attention to detail, you can achieve a sturdy and reliable extension that seamlessly integrates with your existing table saw.
| Characteristics | Values |
|---|---|
| Purpose | Extend the table saw surface for larger workpieces |
| Materials Needed | Plywood (3/4" or thicker), hardwood strips, screws, wood glue, clamps |
| Tools Required | Table saw, drill, measuring tape, square, sander, screwdriver |
| Extension Size | Typically 24" x 48" or customized to fit the table saw |
| Thickness | Match the table saw's surface height (usually 3/4" to 1") |
| Alignment | Ensure extension is flush with the table saw surface for accuracy |
| Support Structure | Use sturdy legs or brackets for stability |
| Surface Finish | Sand smooth and apply finish (polyurethane, varnish, or paint) |
| Safety Features | Include anti-kickback devices and ensure no obstructions |
| Cost | $50-$150 depending on materials and size |
| Time to Build | 4-6 hours (including drying time for glue) |
| Difficulty Level | Intermediate (basic woodworking skills required) |
| Customization Options | Add miter tracks, T-tracks, or additional supports for versatility |
| Maintenance | Regularly check for alignment and tighten screws as needed |
| Portability | Design can be made removable for easy storage |
| Weight Capacity | Depends on material thickness and support structure (typically 50-100 lbs) |
Explore related products
What You'll Learn
- Planning & Design: Measure workspace, determine extension size, sketch design, choose materials, and list tools needed
- Material Selection: Select plywood, hardwood, or MDF, ensure durability, check for flatness, and consider budget
- Cutting & Assembly: Cut pieces to size, assemble frame, attach surface, and ensure stability
- Alignment & Safety: Align extension with saw, secure firmly, check for wobble, and add safety features
- Finishing Touches: Sand surfaces, apply finish, add edge banding, and test functionality before use
Planning & Design: Measure workspace, determine extension size, sketch design, choose materials, and list tools needed
Before you dive into building a table saw extension, understand that precision in planning and design is non-negotiable. A poorly measured extension can compromise safety, functionality, and workspace efficiency. Start by measuring your existing workspace, noting the dimensions of your table saw and the available area around it. Consider how the extension will affect movement and material flow. For example, if your saw is against a wall, an extension that protrudes too far may obstruct pathways or limit access to other tools. Use a tape measure and mark key points on the floor or wall to visualize the extension’s footprint. This step is not just about numbers—it’s about anticipating how the extension will integrate into your workflow.
Once you’ve assessed your workspace, determining the extension size requires balancing ambition with practicality. A common mistake is overestimating the needed length or width, leading to wasted materials or an unwieldy structure. For most hobbyists, a 24-inch to 36-inch extension along the saw’s fence line suffices for handling sheet goods or longer boards. However, if you frequently work with 4x8 plywood, consider a 48-inch extension. Factor in the thickness of your chosen material—typically ¾-inch plywood or MDF—and ensure the extension aligns flush with the saw table to maintain cutting accuracy. Remember, an extension that’s too large can become a liability, while one that’s too small defeats its purpose.
Sketching your design is where abstract measurements become tangible plans. Use graph paper to scale your workspace and extension, ensuring proportional accuracy. Include details like support legs, bracing, and attachment points to the saw table. For instance, a simple design might feature a rectangular platform with 2x4 legs and a cleat system for securing it to the saw. More complex designs could incorporate foldable mechanisms or integrated storage. Label dimensions and material cut lists directly on the sketch to streamline the building process. This visual blueprint isn’t just a guide—it’s a problem-solving tool that reveals potential flaws before you cut any wood.
Material selection is a critical decision point that impacts durability, cost, and ease of construction. Plywood and MDF are popular choices for the tabletop due to their flatness and stability, but consider the trade-offs: plywood resists moisture better, while MDF offers a smoother surface. For structural components like legs and braces, solid wood or metal provides superior strength. If using wood, opt for straight-grained, knot-free boards to minimize warping. Don’t overlook hardware—heavy-duty screws, T-nuts, and angle brackets ensure a secure assembly. Your material choices should align with both your budget and the extension’s intended use; a weekend warrior’s setup doesn’t need the same robustness as a professional’s.
Finally, compiling a tool list ensures you’re prepared for every step of construction. At minimum, you’ll need a circular saw or table saw (ironic, but true), a drill, a square, clamps, and a measuring tape. For precision, a router can create clean edges, while a Kreg Jig simplifies pocket hole joinery. Safety gear—eye protection, ear protection, and a dust mask—is non-negotiable. If your design includes metal components, a welder or angle grinder may be necessary. Organize your tools by task to avoid mid-project delays. This inventory isn’t just about having the right equipment—it’s about ensuring each tool is in working order and within reach when you need it.
Crafting a Stunning Red Wood Table Top: DIY Guide
You may want to see also
Explore related products
Material Selection: Select plywood, hardwood, or MDF, ensure durability, check for flatness, and consider budget
Choosing the right material for your table saw extension is critical to its functionality and longevity. Plywood, hardwood, and MDF each offer distinct advantages and drawbacks. Plywood, with its layered construction, provides excellent stability and resistance to warping, making it a popular choice for extensions that need to withstand heavy use. Hardwood, such as maple or oak, offers superior durability and a premium finish but comes at a higher cost and requires more skill to work with. MDF, while budget-friendly and smooth, lacks the strength of the other two and is prone to moisture damage, limiting its suitability for workshop environments.
When evaluating durability, consider the demands of your projects. If you frequently cut dense materials like hardwoods or metals, plywood or hardwood will outperform MDF, which can chip or break under stress. For occasional use or lighter tasks, MDF may suffice, but its lifespan will be shorter. Always inspect the material for flatness, as any warping or imperfections will transfer to your extension, compromising accuracy. Use a straightedge or level to check for deviations, ensuring the surface is true before proceeding.
Budget plays a pivotal role in material selection. Plywood strikes a balance between cost and performance, typically ranging from $20 to $50 per sheet, depending on thickness and quality. Hardwood can cost upwards of $100 for a suitable piece, while MDF is the most affordable, often under $20. However, factor in long-term costs: a cheaper material may require replacement sooner, negating initial savings. For example, investing in hardwood or high-quality plywood can save money over time if you plan to use the extension extensively.
A practical tip is to test the material’s compatibility with your table saw before committing. Place a sample piece on your saw and assess how it aligns with the existing surface. Ensure it doesn’t create gaps or unevenness, as these can affect cut precision. Additionally, consider finishing options: hardwood can be sanded and sealed for a professional look, while plywood and MDF may require edge banding or paint to prevent wear. By weighing these factors, you’ll select a material that meets your needs without overspending or sacrificing quality.
Creative Collage Techniques: Transforming Wooden Tables with Artistic Flair
You may want to see also
Explore related products
Cutting & Assembly: Cut pieces to size, assemble frame, attach surface, and ensure stability
Precision in cutting is paramount when crafting a wood table saw extension. Each piece must align seamlessly to ensure both functionality and safety. Begin by measuring and marking your lumber according to your design plans, accounting for blade height and fence alignment. Use a sharp blade and a straightedge guide to achieve clean, accurate cuts. For example, if your extension requires a 24-inch by 36-inch surface, double-check measurements before making the final cut to avoid costly mistakes. Remember, a miter saw or circular saw with a guide can yield more consistent results than a handheld saw.
Assembling the frame demands attention to detail and structural integrity. Start by laying out the cut pieces on a flat surface, ensuring they align with your design. Use wood glue along the joints and secure them with screws or pocket holes for added strength. A clamp is your best friend here—it holds pieces firmly in place while the glue dries. For instance, if your frame includes a crossbrace, position it diagonally to maximize stability. Avoid over-tightening screws, as this can split the wood, compromising the frame’s durability.
Attaching the surface to the frame is where your extension begins to take shape. Choose a flat, smooth piece of plywood or hardwood for the tabletop, ensuring it’s free of warps or defects. Secure it to the frame using screws driven from underneath to maintain a clean appearance. Pre-drill holes to prevent splitting, especially if using hardwood. A tip: apply a bead of wood glue between the frame and surface for added adhesion. Once attached, sand any rough edges and ensure the surface is level to guarantee accurate cuts when using the extension.
Stability is non-negotiable for a table saw extension. Test the assembled unit by applying gentle pressure from various angles to identify weak points. Reinforce corners or joints with additional screws or brackets if necessary. For added safety, consider adding rubber pads or anti-slip feet to the base to prevent movement during operation. Compare this to a poorly stabilized extension, which can wobble or shift, leading to inaccurate cuts or even injury. By prioritizing stability, you ensure your extension functions as a reliable, long-lasting tool.
Repairing a Warped Reclaimed Wood Table Top: A Step-by-Step Guide
You may want to see also
Explore related products
Alignment & Safety: Align extension with saw, secure firmly, check for wobble, and add safety features
A misaligned table saw extension is more than an inconvenience—it’s a hazard. Even a fraction of an inch off can lead to binding blades, kicked-back wood, or uneven cuts. Start by aligning the extension’s surface perfectly with the saw table. Use a straightedge or carpenter’s square to ensure both surfaces are flush along the entire length. Pay special attention to the front and back edges, as these are critical for consistent feeding of material. If your saw has adjustable rails or mounting brackets, fine-tune them until the extension sits seamlessly alongside the main table.
Securing the extension firmly is non-negotiable. Loose extensions wobble under pressure, creating instability that can ruin precision and endanger the operator. For wooden extensions, use heavy-duty screws or bolts anchored into the saw’s frame or a sturdy base. Metal extensions may require welding or clamping systems designed for industrial use. Test the firmness by applying downward and lateral pressure at various points. If there’s any give, reinforce the connection with additional fasteners or bracing. Remember: a rigid extension behaves as a natural extension of the saw, not an afterthought.
Wobble is the silent saboteur of table saw extensions. Even minor instability amplifies with each cut, leading to inaccurate results or dangerous tool behavior. After securing the extension, run a straightedge across both surfaces again, checking for gaps or unevenness. For dynamic testing, place a long piece of scrap wood on the extension and push it through the blade. Observe if the wood catches or veers off course. If wobble persists, inspect the attachment points and underlying supports—sometimes, adding a diagonal brace or redistributing weight solves the issue.
Safety features aren’t optional—they’re the final line of defense against accidents. Install anti-kickback pawls and a riving knife or splitter if your extension alters the blade’s exposure. Add a push stick holder within arm’s reach to encourage safe material handling. For extensions that increase the table’s height, ensure the blade guard and dust collection system still function properly. Finally, mark the extension’s edges with high-contrast tape to improve visibility during operation. These measures transform a functional extension into a safe, integrated workspace.
Transform Your Wood Table with Glass Mosaic Tiles: A DIY Guide
You may want to see also
Explore related products
Finishing Touches: Sand surfaces, apply finish, add edge banding, and test functionality before use
Smooth surfaces are essential for both functionality and aesthetics in a table saw extension. Sanding removes imperfections, splinters, and rough edges that could snag material or mar the final look. Start with medium-grit sandpaper (120-150 grit) to level surfaces and round sharp corners, then progress to finer grits (220-320) for a polished feel. Focus on uniformity, especially along joints and edges, to ensure a seamless integration with your table saw. Hand sanding is ideal for control, but a power sander can expedite large, flat areas. Always sand in the direction of the wood grain to avoid scratches.
Applying a finish protects the wood from moisture, stains, and wear while enhancing its natural beauty. Choose a finish suited to your workspace conditions—polyurethane for durability, tung oil for a natural matte look, or shellac for quick drying. Apply thin, even coats with a brush or cloth, allowing ample drying time between layers (typically 2-4 hours). Lightly sand with 320-grit paper between coats to ensure adhesion and smoothness. Two to three coats are usually sufficient, but high-traffic areas may benefit from an extra layer. Avoid overloading the wood, as this can lead to drips or a sticky surface.
Edge banding conceals raw edges, adds strength, and provides a professional finish. Select a banding material that matches your wood—veneer for a seamless look, PVC for durability, or hardwood for a contrasting accent. Apply iron-on banding with a household iron and trim with a sharp utility knife, or use adhesive-backed banding for a quicker installation. For a custom touch, route a decorative profile along the edges before applying the banding. Ensure the banding is flush with the surface to prevent catching on materials during use.
Before putting your extension into service, test its functionality to ensure safety and usability. Check for stability by applying pressure to various points, ensuring it doesn’t wobble or shift. Verify alignment with the table saw’s blade by sliding a straightedge across both surfaces. Run a test cut with scrap material to confirm the extension supports the workpiece smoothly without binding. Inspect all fasteners and joints for tightness, and address any issues before use. A well-finished and thoroughly tested extension not only enhances your workflow but also prolongs the life of your tools.
Caring for Untreated Wood Tables: Essential Tips for Longevity and Beauty
You may want to see also
Frequently asked questions
You will need plywood or MDF for the tabletop, solid wood for the frame, screws or bolts for assembly, edge banding for a clean finish, and clamps for securing the extension to your existing table saw.
Measure the height and depth of your table saw’s surface accurately. Use a straightedge or level to ensure the extension is flush with the table saw. Test the alignment by placing a straight board across both surfaces before securing the extension.
Yes, you can install a miter track or T-track for added functionality. Ensure the track is aligned parallel to the blade. Additionally, you can add a fence support by attaching a cleat or bracket to the extension for stability.
