Jake Miller
When tiling a wooden table, it’s crucial to prepare the surface properly to ensure durability and adhesion. Before placing tiles, the wood should be covered with a suitable underlayment, such as cement backer board or a waterproof membrane, to create a stable and moisture-resistant base. This layer prevents the wood from expanding or warping due to temperature changes or moisture, which could cause the tiles to crack or loosen over time. Additionally, applying a thin-set mortar or adhesive directly to the underlayment ensures a strong bond between the tiles and the table, resulting in a professional and long-lasting finish. Proper preparation is key to transforming a wooden table into a tiled masterpiece.
| Characteristics | Values |
|---|---|
| Material | Cement board, backer board, waterproof plywood, or marine plywood |
| Thickness | Typically 1/4 inch to 1/2 inch, depending on the material and table size |
| Water Resistance | High (essential for areas exposed to moisture) |
| Stability | Rigid and flat to provide a smooth surface for tile adhesion |
| Adhesion | Compatible with tile adhesives (e.g., thin-set mortar) |
| Durability | Resistant to warping, cracking, and mold growth |
| Ease of Installation | Moderate (requires cutting and securing to the wood surface) |
| Cost | Varies; cement board is cost-effective, while marine plywood is more expensive |
| Weight | Adds minimal weight compared to the wood substrate |
| Compatibility | Works with ceramic, porcelain, and natural stone tiles |
| Preparation | Wood surface must be clean, dry, and structurally sound before installation |
| Expansion Joints | May require gaps between tiles or around the table edges to accommodate expansion |
| Finish | Not visible after tiling, as it is fully covered by tiles and grout |
| Maintenance | Low maintenance once installed and tiled |
Explore related products
What You'll Learn
- Cement Board Underlayment: Provides stable, waterproof base for tiles, preventing wood warping and ensuring long-lasting adhesion
- Schluter DITRA Membrane: Uncouples tiles from wood, reducing stress cracks and allowing moisture expansion
- Plywood Substrate: Adds strength to wood surface, ensuring even tile support and preventing sagging
- Thinset Mortar Application: Bonds tiles directly to wood with proper preparation and thin-set adhesive
- Fiberglass Mesh Tape: Reinforces seams and joints, minimizing cracks and improving tile installation durability
Cement Board Underlayment: Provides stable, waterproof base for tiles, preventing wood warping and ensuring long-lasting adhesion
Wood, while beautiful, is inherently susceptible to moisture damage. This vulnerability becomes a critical concern when tiling a table, as grout lines and spills can introduce water that warps and rots the wood over time. Cement board underlayment emerges as a hero in this scenario, offering a robust solution to this age-old problem. Its dense, water-resistant composition acts as a protective barrier, shielding the wood substrate from moisture penetration. This not only prevents warping and cracking but also ensures the longevity of your tiled surface, making it a wise investment for any table project.
Imagine a beautifully tiled table, its surface gleaming with vibrant colors and intricate patterns. But beneath this aesthetic appeal lies a hidden threat: moisture seeping through the grout lines, slowly weakening the wooden base. This scenario is all too common, leading to warped surfaces and costly repairs. Cement board underlayment, however, acts as a sentinel, safeguarding your table from this silent destroyer. Its rigid structure provides a stable foundation for tiles, preventing them from shifting or cracking due to wood movement.
Installing cement board underlayment is a straightforward process, requiring basic DIY skills and readily available tools. Begin by cutting the board to fit the table's dimensions, ensuring a snug fit. Secure the board to the wood using corrosion-resistant screws, spaced at regular intervals as recommended by the manufacturer. Apply a waterproof membrane over the seams and screw heads for added protection. Finally, allow the membrane to cure completely before proceeding with tile installation. This meticulous approach guarantees a watertight seal, ensuring your table remains structurally sound for years to come.
While other underlayment options exist, cement board stands out for its superior strength and moisture resistance. Unlike plywood or backer board, it won't delaminate or swell when exposed to water, making it the ideal choice for wet environments like kitchens and bathrooms. Its durability also translates to a longer lifespan for your tiled table, saving you from future repairs and replacements.
By incorporating cement board underlayment into your table tiling project, you're not just adding tiles; you're investing in the long-term health and beauty of your furniture. It's a proactive measure that prevents costly damage and ensures your table remains a stunning centerpiece for years to come. Remember, a little foresight and the right materials can make all the difference in creating a truly lasting masterpiece.
Repairing Chewed Wood Table Corners: A Step-by-Step Restoration Guide
You may want to see also
Explore related products

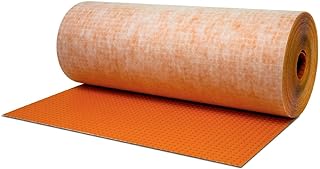

Schluter DITRA Membrane: Uncouples tiles from wood, reducing stress cracks and allowing moisture expansion
Wood, while beautiful, is an organic material prone to movement. It expands and contracts with changes in humidity, a natural process that can wreak havoc on rigid tile installations. This movement creates stress, leading to cracked grout lines and even fractured tiles. Enter the Schluter DITRA membrane, a game-changer for tiling over wood substrates.
Imagine a flexible, polyethylene mat with a grid of square cavities on its underside. This innovative design acts as a buffer, decoupling the tile from the wood. The tiles adhere to the DITRA, not directly to the wood, allowing for independent movement. This uncoupling significantly reduces the stress transferred to the tile assembly, minimizing the risk of cracks and ensuring a longer-lasting installation.
Installation is straightforward:
- Prepare the Wood Subfloor: Ensure the wood is clean, dry, and structurally sound. Any loose boards or squeaks should be addressed beforehand.
- Apply Thinset Mortar: Spread a layer of thinset mortar over the wood subfloor using a notched trowel. The notch size will depend on the specific DITRA product you choose.
- Lay the DITRA Membrane: Carefully roll out the DITRA membrane over the thinset, ensuring the studded side faces down. Press it firmly into the mortar, using a grout float to embed the studs and remove air pockets.
- Tile Installation: Once the thinset beneath the DITRA has cured, you can proceed with tiling as usual. Apply thinset mortar to the smooth side of the DITRA and set your tiles, following standard tiling practices.
Beyond Crack Prevention: DITRA's benefits extend beyond crack prevention. The membrane's cavities also allow for moisture vapor transmission, crucial for wood substrates. Wood naturally releases moisture, and DITRA's design permits this vapor to escape, preventing moisture buildup and potential mold growth beneath the tile.
Schluter DITRA membrane is a wise investment for any tile installation over wood. Its ability to uncouple tiles, reduce stress cracks, and manage moisture makes it an essential component for a durable and long-lasting tiled table.
Repairing White Peeling Veneer: A Step-by-Step Guide for Wood Tables
You may want to see also
Explore related products
Plywood Substrate: Adds strength to wood surface, ensuring even tile support and preventing sagging
Plywood substrate serves as a critical foundation when tiling over wood surfaces, particularly for tables. Its primary role is to reinforce the structural integrity of the wood, distributing the weight of the tiles evenly and preventing the surface from sagging or warping under pressure. Unlike raw wood, which can be uneven or prone to moisture absorption, plywood provides a stable, flat base that ensures tiles adhere securely and maintain their alignment over time.
When selecting plywood for this purpose, opt for exterior-grade or marine-grade varieties, as they are treated to resist moisture and humidity—common challenges in kitchen or outdoor table projects. A thickness of ¼ inch to ½ inch is typically sufficient, depending on the table’s size and the weight of the tiles. Thicker plywood offers greater strength but adds bulk, so balance structural needs with the table’s aesthetic and functional requirements.
Installation begins with sanding the existing wood surface to create a smooth, even base. Apply a layer of construction adhesive or epoxy to bond the plywood substrate to the wood, ensuring full coverage to eliminate air pockets. Secure the plywood with screws spaced every 6 to 8 inches, using countersunk screws to avoid interference with the tile installation. Once the substrate is in place, allow the adhesive to cure fully before proceeding with the tiling process.
The benefits of using plywood as a substrate extend beyond structural support. It acts as a barrier between the wood and the tile adhesive, reducing the risk of moisture penetration that could cause the wood to expand or contract. This is especially important in environments where the table may be exposed to spills or humidity. Additionally, plywood’s smooth surface minimizes the likelihood of cracks or gaps forming beneath the tiles, ensuring a professional finish.
In summary, plywood substrate is an indispensable component when tiling over wood tables. It provides the necessary strength to support tiles, prevents sagging, and safeguards the wood from moisture damage. By choosing the right type and thickness of plywood and following proper installation techniques, you can create a durable, long-lasting tiled surface that enhances both the functionality and appearance of your table.
Crafting a Sturdy Wooden Step Table: DIY Guide for Beginners
You may want to see also
Explore related products
Thinset Mortar Application: Bonds tiles directly to wood with proper preparation and thin-set adhesive
Tiling directly onto wood is a delicate process that demands precision and the right materials. Thinset mortar, a versatile adhesive, emerges as a key player in this scenario, offering a robust bond between tiles and wood surfaces. However, success hinges on meticulous preparation and application techniques.
Before embarking on this project, it's crucial to understand that wood, unlike concrete or cement board, is prone to expansion and contraction due to moisture and temperature fluctuations. This inherent characteristic can lead to tile cracking or detachment if not addressed properly.
Preparation is Key: The wood surface must be meticulously prepared to ensure optimal adhesion. Start by sanding the wood to create a rough, textured surface, free from any varnish, paint, or sealant. This roughness allows the thinset mortar to grip the wood effectively. Next, clean the surface thoroughly, removing any dust, debris, or grease. A clean, dry surface is essential for a strong bond. Consider using a wood primer specifically designed for tile installations. This primer acts as a barrier, minimizing moisture absorption and enhancing the bond between the wood and thinset.
Application Technique: Choose a thinset mortar suitable for wood substrates, typically a polymer-modified variety. Follow the manufacturer's instructions for mixing ratios, ensuring a smooth, lump-free consistency. Using a notched trowel, spread the thinset onto the prepared wood surface, creating ridges that will allow air to escape and promote a strong bond. The notch size depends on the tile size; generally, larger tiles require larger notches.
Setting the Tiles: Carefully place the tiles onto the thinset bed, pressing them firmly into place. Use tile spacers to ensure consistent grout lines. Gently tap the tiles with a rubber mallet to level them and ensure full contact with the thinset. Allow the thinset to cure completely according to the manufacturer's instructions before grouting.
Cautions and Considerations: While thinset mortar provides a strong bond, it's crucial to remember that wood is not the ideal substrate for tiling. For areas prone to moisture, such as kitchen countertops or bathroom vanities, consider using a cement backer board over the wood before tiling. This additional layer provides a more stable and moisture-resistant base. Additionally, avoid using thinset mortar in areas with extreme temperature fluctuations, as this can cause the wood to expand and contract, potentially compromising the tile installation.
Easy DIY Fixes for Scuffs on Vinyl Wood Tables
You may want to see also
Explore related products
Fiberglass Mesh Tape: Reinforces seams and joints, minimizing cracks and improving tile installation durability
Tiling a wooden table introduces unique challenges, particularly at seams and joints where wood naturally expands, contracts, and shifts. Fiberglass mesh tape emerges as a critical solution, specifically designed to address these vulnerabilities. Its primary function is to reinforce these weak points, creating a stable substrate that minimizes the risk of cracks forming beneath the tile. This reinforcement is essential for longevity, ensuring the tiled surface remains intact despite the inherent movement of the wood beneath.
The application process for fiberglass mesh tape is straightforward but requires precision. Begin by cleaning the wooden surface thoroughly, removing any dust, debris, or old adhesives. Apply a thin, even layer of thinset mortar over the area where the tape will be placed, focusing particularly on seams and joints. Press the fiberglass mesh tape firmly into the mortar, ensuring it adheres smoothly without wrinkles or bubbles. The tape’s open weave allows the mortar to penetrate and bond effectively, creating a unified layer that strengthens the entire structure. Once the mortar sets, proceed with applying additional thinset and laying the tiles as usual.
One of the standout advantages of fiberglass mesh tape is its compatibility with various tiling materials and adhesives. Whether using porcelain, ceramic, or natural stone tiles, the tape integrates seamlessly into the installation process. It is particularly effective when paired with flexible thinset mortars, which accommodate minor wood movements without compromising the tile bond. This combination ensures the tiled surface remains durable and crack-resistant, even in environments with fluctuating humidity or temperature.
While fiberglass mesh tape is highly effective, its success depends on proper installation. Avoid stretching the tape during application, as this can weaken its structure and reduce its reinforcing capabilities. Similarly, ensure the mortar layer beneath the tape is neither too thick nor too thin—aim for a consistent 1/8-inch layer for optimal adhesion. For larger tables or those with significant wood movement, consider using additional reinforcement techniques, such as screwing a cement backer board to the wooden surface before applying the tape and tiles.
In comparison to alternative methods like wire mesh or expanding foam, fiberglass mesh tape offers a balance of flexibility and strength. Wire mesh, while robust, can be rigid and difficult to work with on curved or irregular surfaces. Expanding foam, on the other hand, lacks the tensile strength needed to prevent cracks at seams. Fiberglass mesh tape bridges this gap, providing the necessary reinforcement without adding bulk or complexity to the installation process. Its lightweight, pliable nature makes it an ideal choice for DIY enthusiasts and professionals alike, ensuring a durable, professional-grade finish.
Crafting a Rustic Wood Stump Table: DIY Guide for Beginners
You may want to see also
Frequently asked questions
Use a layer of cement backer board or a waterproof membrane like uncoupling membrane to provide a stable, moisture-resistant base for the tile.
No, tiling directly over wood is not recommended as wood expands and contracts with moisture and temperature changes, which can cause tiles to crack or loosen.
Use a flexible, polymer-modified thin-set mortar specifically designed for bonding tile to wood substrates or cement backer board.
