Essential Bits For Your Wood Cnc Machine: A Comprehensive Guide

When venturing into the world of CNC woodworking, selecting the right bits is crucial for achieving precision, efficiency, and desired results. The choice of bits depends on the specific tasks you plan to undertake, such as cutting, carving, engraving, or drilling. Common types include end mills for general cutting, ball nose bits for 3D carving, V-bits for engraving, and spiral bits for efficient material removal. Factors like material hardness, bit material (e.g., carbide for durability), flute count, and shank size also play a significant role. Understanding your machine’s capabilities and the projects you’ll tackle will guide you in building a versatile bit collection tailored to your CNC woodworking needs.

Spindle vs. Router: Choose between spindle for heavy-duty work or router for lighter tasks

Choosing between a spindle and a router for your wood CNC machine hinges on the scale and intensity of your projects. A spindle, typically powered by a dedicated motor, delivers consistent high-speed rotation (24,000 RPM and above), making it ideal for heavy-duty tasks like cutting thick hardwoods, engraving dense materials, or running extended production cycles. Routers, often handheld tools repurposed for CNC use, operate at lower speeds (10,000–24,000 RPM) and are better suited for lighter tasks such as shaping edges, creating intricate designs, or working with softer woods. If your projects demand precision under load, a spindle is the clear choice; for occasional, less demanding work, a router may suffice.

Consider the practical implications of each tool’s design. Spindles are built for durability, with features like water or air cooling to prevent overheating during prolonged use. This makes them a reliable option for professional or industrial settings. Routers, while less robust, offer versatility—many woodworkers already own one, and adapting it for CNC use can be cost-effective. However, routers lack the cooling mechanisms of spindles, limiting their runtime and material compatibility. For example, attempting to cut 1-inch oak with a router may result in overheating and premature bit wear, whereas a spindle would handle the task effortlessly.

Cost and maintenance are critical factors in this decision. Spindles are an investment, with prices ranging from $300 to $1,500 depending on power and features. Routers, on the other hand, are significantly cheaper, often costing between $50 and $200. Maintenance also varies: spindles require periodic checks of cooling systems and bearings, while routers demand frequent bit changes and motor inspections. If you’re a hobbyist with a limited budget, a router might be the practical starting point. For professionals prioritizing efficiency and longevity, a spindle is the smarter long-term choice.

Finally, evaluate your workflow and material preferences. Spindles excel with carbide or diamond-coated bits, ideal for aggressive cuts and hard materials like plywood or MDF. Routers pair best with high-speed steel (HSS) or solid carbide bits, suitable for softer woods and finer detailing. For instance, a spindle with a compression bit can seamlessly cut and finish a cabinet door in one pass, while a router might require multiple bits and slower feeds. Tailor your choice to the materials you work with most often, ensuring your CNC machine becomes a tool that enhances, not hinders, your creativity.

Stepper vs. Servo Motors: Stepper motors are cost-effective; servo motors offer higher precision and speed

Choosing between stepper and servo motors for your wood CNC machine hinges on balancing cost with performance. Stepper motors, often the go-to choice for hobbyists and small workshops, are significantly cheaper and simpler to integrate. They operate by moving in discrete steps, which makes them reliable for basic CNC tasks like cutting simple shapes or engraving. However, their open-loop system means they lack feedback, so if a step is missed due to excessive load, the machine won’t correct it automatically. For projects where precision isn’t critical, steppers are a practical, budget-friendly option.

Servo motors, on the other hand, are the powerhouse choice for professionals demanding high precision and speed. Equipped with a closed-loop feedback system, they constantly monitor and adjust their position, ensuring accuracy even under heavy loads. This makes them ideal for intricate woodworking tasks like carving detailed patterns or cutting complex joints. While their higher cost and complexity might deter beginners, the investment pays off in smoother operation, faster cycle times, and reduced risk of errors. For instance, a servo-driven CNC can achieve speeds up to 1000 mm/min with positional accuracy within 0.01 mm, far surpassing stepper capabilities.

When deciding, consider your project scope and long-term goals. If you’re crafting custom furniture with tight tolerances or producing high-volume pieces, servo motors will save time and material waste. Conversely, if you’re prototyping or working on simpler designs, stepper motors offer sufficient performance without breaking the bank. Keep in mind that upgrading from steppers to servos later can be costly and labor-intensive, so plan ahead based on your anticipated needs.

A practical tip: test both systems if possible. Many CNC kits allow for motor swaps, letting you experiment with steppers initially and upgrade to servos as your skills and demands grow. Additionally, ensure your controller and power supply are compatible with your chosen motor type, as servos often require more sophisticated electronics. By aligning your motor choice with your workflow, you’ll maximize both efficiency and creativity in your woodworking projects.

Dust Collection Systems: Essential for clean, safe operation and prolonging machine life

Wood CNC machines generate significant dust, a byproduct of cutting and carving that poses risks to both operator health and machine longevity. Fine wood particles suspended in the air can cause respiratory issues, while accumulations on machine components lead to overheating, reduced precision, and accelerated wear. A robust dust collection system is not an optional accessory—it’s a critical investment for any CNC setup.

Consider the components of an effective dust collection system: a high-CFM (cubic feet per minute) dust collector, properly sized ductwork, and strategically placed hoods or shrouds to capture dust at the source. For small CNC machines, a 1-2 HP dust collector with a minimum of 650 CFM is recommended, while larger setups may require 3 HP or more. Ducting should be smooth and short to minimize airflow resistance, with blast gates to direct suction where needed. Hoods should be positioned close to the cutting area, ensuring maximum capture efficiency without obstructing tool movement.

The benefits of a well-designed dust collection system extend beyond immediate safety. By reducing airborne particles, it minimizes the risk of fires caused by combustible dust accumulation. It also keeps the workspace clean, improving visibility and reducing cleanup time. For the CNC machine itself, less dust means fewer clogs in vents, bearings, and slides, resulting in smoother operation and fewer maintenance interruptions.

When selecting a dust collection system, prioritize compatibility with your CNC machine’s size and dust output. For example, machines with automatic tool changers or multi-axis capabilities may require more flexible hood designs. Additionally, consider integrating a dust separator to prevent fine particles from reaching the collector, prolonging filter life and maintaining suction power. Regular maintenance, such as emptying collection bins and cleaning filters, is essential to keep the system operating at peak efficiency.

In summary, a dust collection system is not just a safety measure—it’s a safeguard for your CNC machine’s performance and lifespan. By investing in the right components and maintaining them diligently, you ensure a cleaner, safer, and more productive woodworking environment.

Tooling & Bits Selection: Match bits to wood type and project complexity for best results

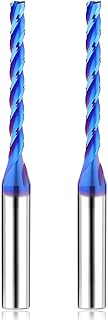

Selecting the right bits for your wood CNC machine is akin to choosing the perfect brush for a painting—it defines the outcome. Hardwoods like oak or maple demand robust, sharp bits with high chip-clearing efficiency, such as two-flute upcut spiral bits, to prevent burning and ensure clean cuts. Softer woods like pine or MDF, however, pair well with single-flute bits, which minimize material buildup and reduce the risk of chipping. The wood’s density and grain direction are critical factors; cross-grain cuts require sharper, more durable bits to avoid tear-out. Always match the bit’s material—carbide for longevity, HSS for occasional use—to the frequency and intensity of your projects.

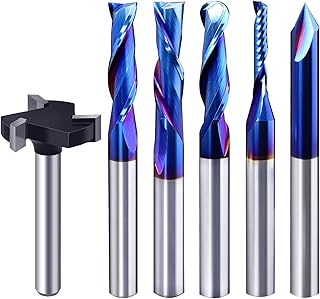

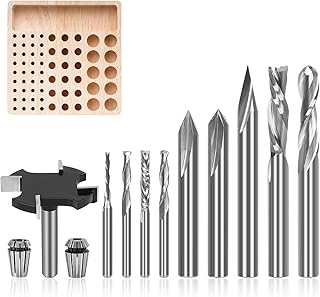

Project complexity dictates bit versatility and precision. Simple 2D designs thrive with V-bits for engraving or flat end mills for clean edges, while intricate 3D carvings demand ball nose bits for smooth, contoured surfaces. For multi-step projects, consider a starter kit with a variety of bits, such as a 1/4-inch end mill, 1/8-inch V-bit, and 1/2-inch surfacing bit, to cover a range of tasks. Advanced users might invest in specialty bits like chamfer bits for beveling or compression bits for minimizing chip buildup in deep cuts. Always prioritize bits with coatings like TiAlN or TiN for harder materials, as they reduce friction and extend tool life.

A common mistake is overlooking shank size and collet compatibility. Ensure your CNC machine’s collet matches the bit’s shank diameter—typically 1/4-inch or 1/8-inch—to avoid slippage or damage. For intricate work, smaller shanks offer better control but may sacrifice rigidity. Larger shanks provide stability for aggressive cuts but limit accessibility in tight spaces. Test bits on scrap material before committing to a project, adjusting feed rates and spindle speeds to optimize performance. A rule of thumb: softer woods can handle higher speeds (12,000–18,000 RPM), while hardwoods require slower, more deliberate cuts (8,000–12,000 RPM).

Maintenance is as crucial as selection. Carbide bits, though durable, dull over time, especially when cutting abrasive woods like teak or walnut. Regularly inspect bits for wear and clean them with compressed air or a soft brush to remove debris. Store bits in a dry, organized case to prevent damage and rust. For longevity, avoid excessive feed rates—start at 50–75% of the recommended speed and gradually increase until you find the sweet spot. Remember, a well-maintained bit not only saves costs but also ensures consistent, professional results across all projects.

Finally, consider the environmental and economic impact of your choices. Opt for bits from manufacturers that prioritize sustainability, such as those using recycled materials or offering sharpening services. Bulk purchasing kits can reduce costs and packaging waste, but only if you’ll use all the included bits. For hobbyists, start with a minimal, high-quality set and expand as your skills and project scope grow. By aligning bit selection with both project needs and ethical considerations, you’ll achieve not only superior results but also a more responsible workflow.

Control Software & Hardware: Pick compatible software and hardware for seamless machine operation and control

Selecting the right control software and hardware is pivotal for ensuring your wood CNC machine operates smoothly and efficiently. The control system acts as the brain of your machine, translating design files into precise movements of the cutting tools. Incompatible or outdated components can lead to errors, wasted material, and frustration. Start by identifying the specific requirements of your CNC machine, such as the number of axes, spindle speed, and connectivity options. Popular control hardware options include Mach3, Mach4, and GRBL, each with its own strengths and compatibility with different CNC controllers like the UC100 or SmoothStepper.

When choosing control software, consider the learning curve and features that align with your skill level and project needs. For beginners, user-friendly interfaces like Carbide Create or VCarve Pro offer simplicity and robust support communities. Advanced users might prefer the customization and precision of Fusion 360 or LinuxCNC. Ensure the software supports the file formats you’ll be working with, such as G-code or DXF, and integrates seamlessly with your chosen hardware. Compatibility isn’t just about functionality—it’s about minimizing setup time and maximizing productivity.

Hardware selection goes beyond the controller board. Pay attention to the power supply, stepper motors, and drivers, as these components directly impact the machine’s performance. For example, a 48V power supply paired with high-torque stepper motors can handle heavier cutting tasks, while a 24V setup may suffice for lighter work. Always check the amperage ratings of your drivers to avoid overheating or underperformance. Investing in quality components upfront can save you from costly replacements and downtime later.

A critical but often overlooked aspect is the connectivity between your computer and the CNC machine. USB connections are common but can be unreliable over long distances. Consider Ethernet or parallel port connections for more stable communication, especially in larger workshops. Additionally, some controllers support wireless connectivity, offering flexibility in machine placement. However, wired connections generally provide lower latency, which is crucial for high-precision work.

Finally, test your setup thoroughly before committing to large projects. Run simulations in your software to verify toolpaths and conduct small-scale cuts to ensure hardware responsiveness. Keep firmware updated and maintain a backup of your configuration settings. By prioritizing compatibility and reliability in your control software and hardware, you’ll create a foundation that supports both your current projects and future upgrades.
