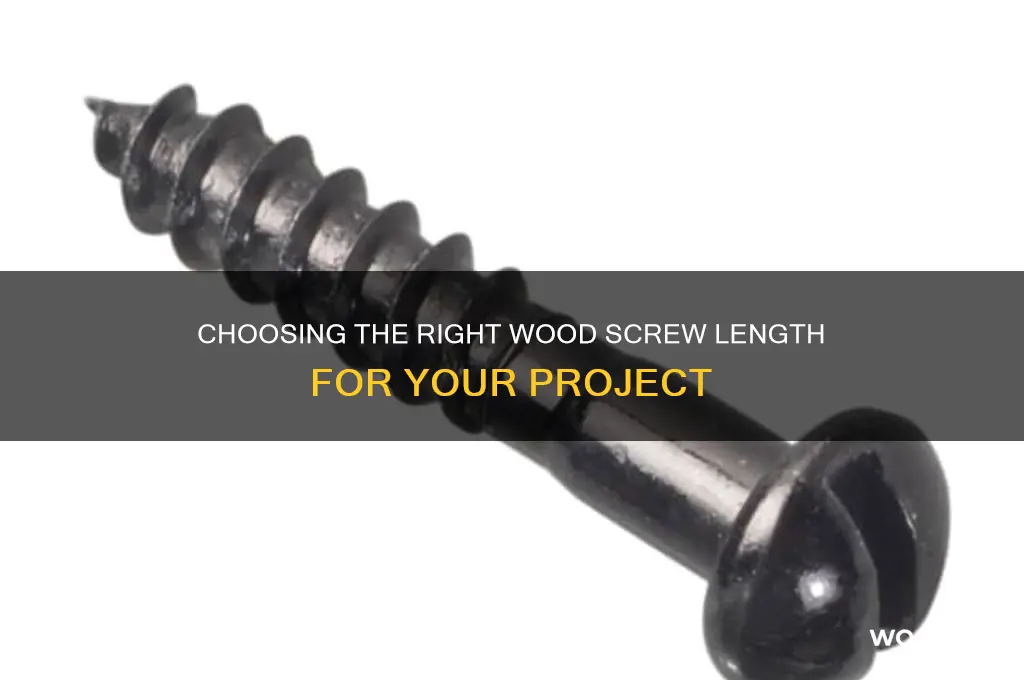

When determining how long a wood screw needs to be, it’s essential to consider the thickness of the materials being joined and the strength required for the connection. As a general rule, the screw should penetrate at least half its length into the bottom piece of wood to ensure a secure hold. For example, if joining two 1-inch thick boards, a 2.5-inch screw would be ideal, with 1.25 inches embedded in the second board. Using a screw that’s too short can compromise the joint’s integrity, while one that’s too long may protrude or damage the material. Additionally, factors like wood density, load-bearing requirements, and the presence of pilot holes can influence the optimal screw length. Always measure carefully and select the appropriate size to achieve a strong and lasting connection.
| Characteristics | Values |
|---|---|
| General Rule | Screw length should be at least 2/3 the thickness of the wood it's screwing into. |
| Minimum Embedment | At least 1/2 the screw diameter into the second piece of wood. |
| Softwoods | Shorter screws can be used due to easier penetration. |
| Hardwoods | Longer screws are needed for stronger hold due to denser wood. |
| Shear Strength | Longer screws generally provide greater shear strength. |
| Pull-Out Strength | Longer screws and greater embedment depth increase pull-out resistance. |
| Pilot Holes | Essential for hardwoods and longer screws to prevent splitting. |
| Screw Type | Different screw types (e.g., coarse vs. fine thread) may require slight adjustments in length. |
| Application | Consider the load-bearing requirements of the joint. |
Explore related products
What You'll Learn
Screw length for softwoods
Softwoods, such as pine, cedar, and spruce, are less dense than hardwoods, which means screws can penetrate them more easily. However, this doesn’t imply that shorter screws are always sufficient. The key to securing softwoods effectively lies in balancing screw length with the material’s structural integrity. A screw that’s too short may not provide adequate hold, while one that’s too long risks splitting the wood or protruding unnecessarily. For most applications, the screw should penetrate the adjoining piece by at least 50% of its length to ensure a strong joint. For example, when joining two pieces of 1-inch pine, a 2-inch screw would be ideal, with 1 inch embedded in the first piece and the remaining inch securing the second.
When determining screw length for softwoods, consider the load the joint will bear. Lightweight projects, like picture frames or decorative shelving, can often use shorter screws, typically ranging from 1 to 1.5 inches. However, for structural applications, such as building a deck or framing a wall, longer screws are necessary. In these cases, screws should be at least 2.5 to 3 inches long to ensure stability and safety. A common rule of thumb is to use a screw that’s at least three times longer than the thickness of the material being fastened, though this can vary based on specific project demands.
Another critical factor is the grain direction of the softwood. Screws driven parallel to the grain are more likely to split the wood, especially if the screw is too long or the wood is particularly brittle. To mitigate this, pre-drilling pilot holes is essential, particularly for longer screws. For softwoods, a pilot hole should be slightly smaller than the screw’s shaft diameter but larger than its threads. This allows the threads to grip the wood without causing excessive stress. For example, a #8 screw would typically require a 1/8-inch pilot hole for optimal performance.
Finally, environmental conditions play a role in screw length selection for softwoods. Outdoor projects exposed to moisture and temperature fluctuations require corrosion-resistant screws, often made of stainless steel or coated with zinc. These screws may need to be longer to compensate for potential material expansion or contraction. Additionally, using screws that are slightly longer than the minimum requirement can provide extra security in dynamic environments. For instance, a 3-inch screw might be chosen for an outdoor bench made of cedar, even if 2.5 inches would technically suffice, to account for long-term durability.
In summary, screw length for softwoods depends on factors like load requirements, grain direction, and environmental exposure. By following guidelines such as the 50% penetration rule, pre-drilling pilot holes, and accounting for project-specific demands, you can ensure strong and lasting joints. Whether you’re crafting a lightweight indoor project or constructing a heavy-duty outdoor structure, the right screw length will make all the difference in the final result.
Polyurethane Drying Time: Factors Affecting Wood Finishing Process
You may want to see also
Screw length for hardwoods
Hardwoods demand precision in screw length to ensure both structural integrity and aesthetic appeal. Unlike softwoods, hardwoods are denser and less forgiving, making the choice of screw length critical. A general rule of thumb is that the screw should penetrate the hardwood by at least 1.5 inches to achieve a secure hold. This ensures the screw engages the material deeply enough to withstand tension and shear forces. For example, if you’re joining a 1-inch thick hardwood board to a 2-inch thick hardwood beam, a 3.5-inch screw would be appropriate, allowing 1.5 inches of penetration into the beam.
Selecting the right screw length for hardwoods involves balancing depth and practicality. Overly long screws can split the wood, especially near the end grain, while short screws fail to provide adequate strength. To mitigate splitting, pre-drilling pilot holes is essential, particularly for screws longer than 2.5 inches. For hardwoods like oak or maple, which are prone to cracking, using a screw that is at least 2.5 times the thickness of the top board can help distribute stress evenly. For instance, a 1-inch thick hardwood board should be paired with a screw that penetrates at least 2.5 inches into the underlying material.
The application of the screw also dictates its length in hardwood projects. For structural joints, such as framing or decking, longer screws are necessary to handle heavier loads. A 4-inch screw is often recommended for hardwood decking to ensure it penetrates the joist by at least 2 inches. In contrast, decorative or surface-level applications, like attaching trim or molding, may require shorter screws (1.25 to 2 inches) to avoid protruding through the material. Always consider the wood’s grain direction; screws driven parallel to the grain require greater length to achieve the same holding power as those driven perpendicular.
Finally, environmental factors play a role in screw length selection for hardwoods. Outdoor projects exposed to moisture or temperature fluctuations require corrosion-resistant screws, often stainless steel or coated varieties, which may be slightly thicker. In such cases, longer screws (e.g., 3 to 4 inches) are preferable to account for potential wood expansion or contraction. For indoor projects, standard carbon steel screws suffice, but the length should still adhere to the 1.5-inch penetration rule. Always test screws in a scrap piece of the same hardwood to ensure compatibility and adjust length as needed.
Understanding the Lifespan of Cottonwood Trees: A Comprehensive Guide
You may want to see also
Pilot hole size requirements
Drilling a pilot hole is crucial when driving wood screws, especially in hardwoods, to prevent splitting and ensure a secure hold. The size of the pilot hole directly impacts the screw's performance and the wood's integrity. A common rule of thumb is to use a drill bit that’s slightly smaller than the screw’s root diameter (the thickest part of the screw threads). For example, if using a #8 screw with a root diameter of 0.164 inches, a 1/8-inch (0.125 inches) drill bit is ideal for the pilot hole. This ensures the threads grip the wood without overstressing it.
In softer woods like pine, pilot holes are often smaller or even unnecessary for smaller screws, but they remain essential for larger screws or near the end grain. For hardwoods, however, pilot holes are non-negotiable. The length of the pilot hole should match the screw’s length, minus the depth needed for the screw head to sit flush or countersunk. For instance, if using a 2-inch screw, drill a pilot hole approximately 1.75 inches deep to allow the threads to engage the wood effectively without bottoming out the hole.
The type of screw also influences pilot hole size. Coarse-threaded screws require larger pilot holes than fine-threaded screws because they displace more wood. For decking screws, a pilot hole should be slightly smaller than the screw’s shank to ensure a tight fit without splitting the boards. Always pre-drill countersink holes for screw heads to avoid damaging the wood surface, especially in hardwoods or when using flat-head screws.
A practical tip is to test pilot hole sizes on scrap wood before committing to the project. This ensures the screw drives in smoothly without splitting the wood. If the screw goes in too easily, the pilot hole may be too large, reducing holding power. Conversely, if it’s difficult to drive, the hole is too small, increasing the risk of wood damage. Adjust the drill bit size incrementally until the screw installs with moderate resistance, ensuring a strong, lasting hold.
In summary, pilot hole size requirements are not one-size-fits-all. They depend on the screw type, wood hardness, and screw length. Properly sized pilot holes enhance screw performance, prevent wood splitting, and ensure a professional finish. Always measure the screw’s root diameter, test on scrap wood, and adjust as needed for optimal results.
Pella Wood Windows Lifespan: Durability, Maintenance, and Longevity Explained
You may want to see also
Explore related products
Screw gauge and grip strength
The length of a wood screw is critical for ensuring a secure hold, but it’s not just about reaching the right depth—it’s about gauge and grip strength. A screw’s gauge, or thickness, directly impacts its ability to grip the wood fibers. Thicker screws (lower gauge numbers) provide greater shear strength, making them ideal for load-bearing applications like framing or decking. However, using a screw too thick for the material can split the wood, negating its grip strength entirely. For example, a #10 gauge screw is robust enough for structural tasks but may be overkill for lightweight trim work, where a #6 or #8 gauge offers sufficient grip without risking damage.
Selecting the correct gauge is only half the battle; the screw’s length must also be matched to the material thickness and the desired grip strength. A general rule is to have at least half the screw length embedded in the second material (e.g., a 2.5-inch screw for 1.25 inches of material thickness). This ensures the screw threads engage deeply enough to resist pull-out forces. For softer woods like pine, shorter screws may suffice, but hardwoods like oak require longer screws to achieve the same grip strength due to their denser fibers. Always pre-drill in hardwoods to prevent splitting and maintain optimal grip.
Consider the application’s load requirements when balancing gauge and length. For example, a 3-inch #10 screw provides superior grip strength for securing a ledger board to a house, while a 1.5-inch #8 screw is adequate for attaching cabinet hinges. Overestimating grip strength can lead to unnecessary material stress, while underestimating it risks failure under load. Use a screw length calculator or consult manufacturer guidelines to ensure the gauge and length align with the project’s demands.
Practical tips can further enhance grip strength. For outdoor projects, opt for corrosion-resistant screws (e.g., stainless steel or coated varieties) to maintain long-term hold. In situations where wood density varies, such as when joining different wood species, err on the side of a longer screw to compensate for potential grip inconsistencies. Finally, test the screw’s hold by applying lateral pressure before fully committing to the installation—a screw that moves under moderate force indicates insufficient gauge or length.
In summary, screw gauge and grip strength are interdependent factors that dictate a wood screw’s effectiveness. By matching the gauge to the material and load, selecting a length that ensures deep thread engagement, and applying practical installation techniques, you can achieve a secure and lasting hold. Ignore these principles, and even the longest screw may fail to perform as expected.
Optimal Drying Time: How Long Between Wood Primer Coats?
You may want to see also
Counter-sinking vs. flush mounting
The length of a wood screw is crucial, but so is its placement. Counter-sinking and flush mounting are two techniques that dictate how a screw sits in relation to the wood surface, each with distinct applications and aesthetic outcomes. Counter-sinking involves creating a conical hole slightly deeper than the screw head, allowing it to sit below the surface. This method is ideal for projects where a smooth, snag-free finish is essential, such as furniture or cabinetry. Flush mounting, on the other hand, positions the screw head level with the wood surface, often using a flat-head screw. This approach is more visible and can be a design choice in rustic or industrial styles.
When deciding between counter-sinking and flush mounting, consider the screw’s length and the depth of the pilot hole. For counter-sinking, the screw should be long enough to secure the material without protruding, but its head must sit below the surface. A general rule is to use a screw length that allows at least 75% of its body to penetrate the lower piece of wood for optimal holding power. For flush mounting, the screw length must match the combined thickness of the materials being joined, ensuring the head sits perfectly level. Using a screw that’s too long can cause the wood to split, while one that’s too short may not provide adequate strength.
Counter-sinking requires additional steps, such as drilling a pilot hole and a countersink hole, which can be time-consuming but yields a professional finish. A countersink bit with a depth stop ensures consistency, especially in repetitive tasks like decking or paneling. Flush mounting is simpler, requiring only a pilot hole, but the visible screw head demands careful selection of screw type and finish to align with the project’s aesthetic. For example, brass screws can complement a vintage look, while black oxide screws suit modern designs.
In structural applications, counter-sinking often provides better stability because the screw head is recessed, reducing the risk of snagging or damage. However, flush mounting can be equally strong if the screw is properly sized and the head is wide enough to distribute pressure evenly. For outdoor projects, consider corrosion-resistant screws like stainless steel or coated varieties, regardless of mounting style, to ensure longevity.
Ultimately, the choice between counter-sinking and flush mounting depends on the project’s functional and aesthetic requirements. Counter-sinking prioritizes a clean, unobtrusive finish, while flush mounting embraces the screw as a design element. By carefully selecting screw length and technique, you can achieve both strength and style in your woodworking projects.
Preserved Wood Foundations: Lifespan, Durability, and Long-Term Performance Explained
You may want to see also
Frequently asked questions
The screw should be long enough to penetrate the receiving material by at least half its length, but not so long that it protrudes through the material or damages what’s behind it.
Yes, if a screw is too long, it may protrude through the material, damage what’s behind it, or weaken the wood by splitting it.
A common rule is to use a screw that is at least 2/3 the thickness of the material being fastened, ensuring a secure hold without over-penetration.
