Leveling out an old wood house is a critical task that requires careful planning and execution to ensure structural integrity and safety. Over time, wooden houses can settle unevenly due to factors like soil erosion, foundation shifts, or aging materials, leading to sloping floors, sticking doors, or cracks in walls. The process typically involves assessing the foundation for damage, using tools like jacks or shims to lift and stabilize the structure, and reinforcing weak points with additional supports or piers. It’s essential to address underlying issues, such as moisture problems or termite damage, before leveling to prevent future complications. Hiring a professional contractor with experience in historic or wooden homes is often recommended to achieve precise and lasting results.
| Characteristics | Values |
|---|---|
| Foundation Inspection | Hire a professional to assess the foundation for damage, settling, or rot. |

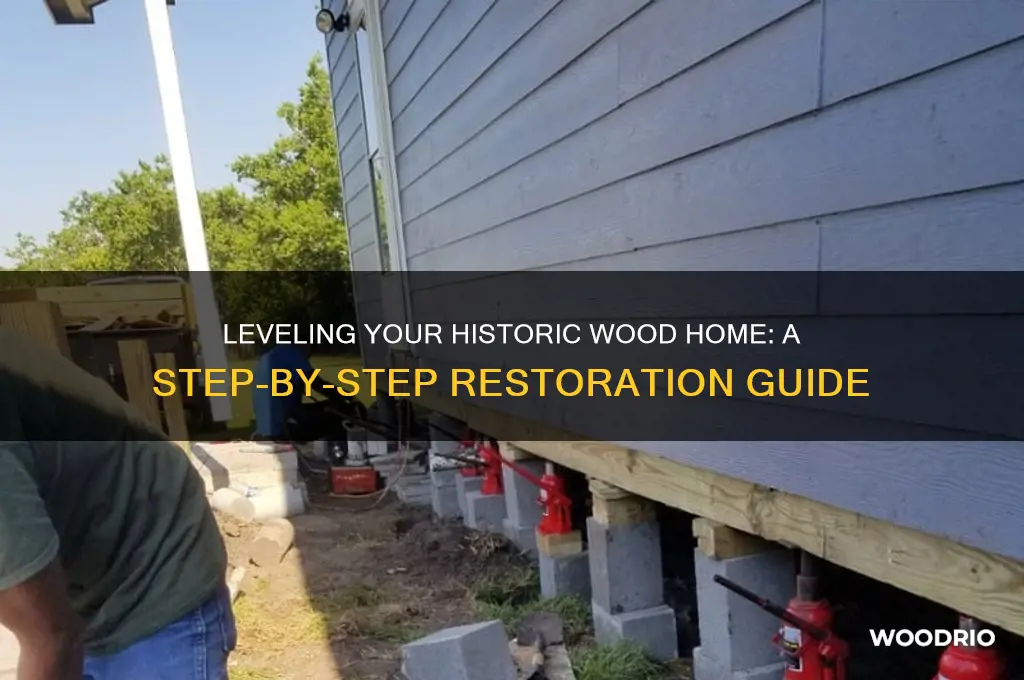

| Jacking and Shimming | Use hydraulic jacks and shims to lift and level the house, starting from the lowest point. |
| Pier and Beam Repair | Replace or repair damaged piers and beams supporting the house. |
| Sill Plate Replacement | Replace rotted or damaged sill plates that connect the house to the foundation. |
| Floor Joist Repair | Sister or replace damaged floor joists to ensure structural integrity. |
| Subfloor Leveling | Use self-leveling compound or plywood sheets to even out uneven subfloors. |
| Wall Straightening | Brace and straighten tilted walls after the foundation is leveled. |
| Plumbing and Electrical Adjustments | Modify plumbing and electrical systems to accommodate the new level of the house. |
| Insulation and Sealing | Re-insulate and seal gaps to improve energy efficiency after leveling. |
| Permits and Regulations | Obtain necessary permits and comply with local building codes. |
| Cost | Varies widely ($5,000 to $30,000+), depending on severity and location. |
| Timeframe | 1-4 weeks, depending on the extent of repairs. |
| Professional Help | Highly recommended due to complexity and safety risks. |
| Maintenance | Regularly inspect and maintain the foundation to prevent future issues. |
Explore related products
What You'll Learn
- Foundation Inspection and Repair: Check for cracks, settle issues, and reinforce the foundation for stability
- Floor Joist Leveling: Sister joists, add support beams, or use shims to straighten sagging floors
- Subfloor Adjustment: Remove old subflooring, replace damaged sections, and ensure a flat surface
- Wall Straightening: Brace and plumb walls, secure studs, and fix leaning structures
- Ceiling and Roof Alignment: Level ceiling joists, adjust roof supports, and fix sagging areas
Foundation Inspection and Repair: Check for cracks, settle issues, and reinforce the foundation for stability
The foundation of an old wooden house is its backbone, and any compromise in its integrity can lead to structural issues, including uneven floors and walls. A thorough inspection is the first step in addressing these problems. Begin by examining the exterior foundation walls for cracks, which can indicate settling or shifting. Hairline cracks are often cosmetic, but wider cracks (over 1/4 inch) or those that are horizontal or stair-stepped may signal serious issues. Use a level to check for unevenness and a tape measure to monitor changes over time. Inside, look for gaps between walls and floors, misaligned doors or windows, and cracks in drywall or plaster. Document all findings with photos and notes to track progression.
Once the inspection is complete, addressing settling issues becomes paramount. Settling occurs when the soil beneath the foundation compresses unevenly, often due to poor compaction, erosion, or changes in moisture content. One common solution is underpinning, which involves extending the foundation depth to more stable soil or bedrock. Helical piers or steel push piers are popular methods, as they are less invasive than traditional concrete underpinning. For minor settling, mudjacking—injecting a slurry of soil, sand, and cement beneath the foundation—can raise and stabilize the structure. Always consult a structural engineer to determine the best approach for your specific situation.
Reinforcing the foundation is the final step in ensuring long-term stability. Start by repairing any identified cracks using epoxy or polyurethane injections, which not only fill the voids but also prevent water intrusion. For added strength, consider installing carbon fiber straps or steel I-beams along weakened walls. Improve drainage around the foundation by grading the soil away from the house, installing gutters and downspouts, and adding a waterproof membrane to exterior walls. Regular maintenance, such as monitoring for plumbing leaks and ensuring proper ventilation in crawl spaces, can prevent future issues.
A proactive approach to foundation inspection and repair not only levels out an old wooden house but also preserves its historical integrity and value. By systematically addressing cracks, settling, and structural weaknesses, homeowners can avoid costly repairs down the line. Remember, the foundation’s health is directly tied to the overall stability of the house, making this process a critical investment in its longevity.
Natalie Wood's Age: Unveiling the Timeless Hollywood Icon's Legacy
You may want to see also
Explore related products
Floor Joist Leveling: Sister joists, add support beams, or use shims to straighten sagging floors
Sagging floors in old wooden houses often stem from weakened or damaged floor joists, which bear the structural load of the flooring above. Over time, factors like moisture, termite damage, or simple aging can cause these joists to warp, rot, or settle unevenly. Addressing this issue requires targeted intervention, and three primary methods stand out: sistering joists, adding support beams, or using shims. Each approach has its merits, depending on the severity of the problem and the desired outcome.
Sistering Joists: A Reinforcement Strategy
Sistering involves securing a new joist alongside an existing one to bolster its strength and stability. This method is ideal for joists that are cracked, split, or slightly weakened but not severely compromised. To execute this, cut a new joist to match the length of the damaged one, ensuring it’s made from pressure-treated lumber for durability. Secure the sister joist using construction adhesive and staggered screws or bolts every 12 to 16 inches. This distributes the load evenly and prevents further sagging. For best results, ensure both joists are level before fastening them together, and consider adding metal joist hangers for added support.
Adding Support Beams: A Structural Overhaul
When multiple joists are severely damaged or the floor sag is extensive, sistering alone may not suffice. In such cases, installing additional support beams beneath the joists can provide the necessary reinforcement. Start by identifying the midpoint of the affected joists and construct a temporary support system to relieve the load. Then, install a steel or laminated beam perpendicular to the joists, transferring the weight to new footings or existing foundation walls. This method is more invasive and costly but offers a long-term solution for significant structural issues. Consult a structural engineer to ensure the beam size and placement meet local building codes.
Using Shims: A Precision Fix for Minor Sagging
For localized sagging or minor unevenness, shims offer a quick and cost-effective solution. Shims are thin wedges made of wood, plastic, or metal, inserted between the joist and the beam or subfloor to raise the floor to the desired level. Begin by identifying the low spots using a level or straightedge. Lift the joist slightly with a jack, then slide the shim into place, ensuring it’s snug but not forcing it to avoid further damage. Secure the shim with screws or adhesive, and repeat as needed. While shims are ideal for small adjustments, they’re not a permanent fix for major structural issues and should be used judiciously.
Choosing the Right Method: A Practical Takeaway
The choice between sistering, adding support beams, or using shims hinges on the extent of the damage and your long-term goals. Sistering is a versatile middle-ground solution, suitable for moderate issues and relatively straightforward to implement. Support beams are the gold standard for severe sagging but require significant time and investment. Shims, while simple, are best reserved for minor corrections. Always inspect the entire floor system before proceeding, as underlying issues like foundation settlement or termite damage may require additional interventions. With careful planning and execution, these methods can restore stability and safety to your old wooden house.
Understanding Mildew Growth on Aging Indoor Wood Porches: Causes and Prevention
You may want to see also
Explore related products
Subfloor Adjustment: Remove old subflooring, replace damaged sections, and ensure a flat surface
Uneven floors in old wooden houses often stem from subfloor deterioration, a problem exacerbated by age, moisture, and structural shifts. The subfloor, typically a layer of plywood or planking nailed to the joists, serves as the foundation for the finished flooring. Over time, it can warp, rot, or sag, creating dips and slopes that affect the entire house. Addressing this issue requires a systematic approach: removing the old subfloor, replacing damaged sections, and ensuring a flat, stable surface for the new flooring.
Step-by-Step Process: Begin by removing the existing flooring material, such as hardwood, carpet, or tile, to expose the subfloor. Use a pry bar and hammer to carefully lift and detach the old subflooring, taking care not to damage the joists. Inspect the exposed area for signs of rot, insect damage, or water stains. Mark damaged sections with chalk or tape for easy identification. For replacement, cut new subflooring (typically ¾-inch plywood) to match the removed sections, ensuring a snug fit. Secure the new pieces with galvanized screws or ring-shank nails, spaced every 6 to 8 inches along the joists. Use a construction adhesive along the edges for added stability.
Ensuring Flatness: Once the subfloor is replaced, check for flatness using a long straightedge or level. Minor imperfections can be addressed by shimming low spots with thin strips of wood or applying self-leveling compound. For more significant gaps, consider sistering joists (attaching new lumber alongside the old) to provide additional support. Sand any high spots to create a uniform surface. A flat subfloor is critical for the longevity of the finished flooring and the overall structural integrity of the house.
Practical Tips: Always wear safety gear, including gloves and eye protection, when removing old subflooring, as nails and splinters pose risks. Use a reciprocating saw for stubborn sections, but proceed cautiously to avoid cutting into joists. When replacing subflooring, ensure the new material is acclimated to the room’s humidity to prevent warping. For added moisture protection, consider applying a vapor barrier beneath the new subfloor, especially in basements or crawl spaces.
Takeaway: Subfloor adjustment is a labor-intensive but essential step in leveling an old wooden house. By systematically removing damaged sections, replacing them with new material, and ensuring a flat surface, you create a stable foundation for the entire structure. This process not only improves floor evenness but also addresses underlying issues that could worsen over time. Done correctly, it transforms a sagging, uneven floor into a solid base ready for new flooring, enhancing both comfort and safety.
Aging Wood for Guitars: Harvest Age and Tone Quality Explained
You may want to see also
Explore related products
Wall Straightening: Brace and plumb walls, secure studs, and fix leaning structures
Leaning walls in an old wood house aren't just an eyesore; they're a symptom of foundational issues that can compromise structural integrity. Wall straightening is a critical step in leveling your home, addressing the visible consequences of settlement and age. This process involves more than just cosmetic fixes; it requires a methodical approach to bracing, plumbing, and securing the very framework of your house.
Imagine your walls as the skeleton of your home. Over time, the "bones" can shift, causing walls to lean or bow. Wall straightening acts as orthopedic surgery, realigning the structure for stability and safety.
The Process: A Delicate Dance of Force and Precision
Begin by identifying the extent of the lean. Use a long level to determine the angle of deviation. For minor leans (less than 1 inch out of plumb over 8 feet), temporary bracing with 2x4s can provide support while you address the root cause. For more severe leans, a system of jacks and cribbing becomes necessary. Hydraulic jacks, capable of exerting thousands of pounds of force, are positioned strategically to counteract the lean. Cribbing, a stack of wooden blocks, provides a stable base for the jacks and allows for gradual adjustments.
Caution: Wall straightening is a high-stakes endeavor. Applying too much force too quickly can lead to cracks, structural damage, or even collapse. Always work in small increments, monitoring the wall's response and making adjustments as needed.
Securing the Studs: The Backbone of the Wall
Once the wall is braced and plumb, the focus shifts to the studs. These vertical framing members are the backbone of the wall, and their integrity is crucial. Inspect each stud for damage or rot. Replace compromised studs with pressure-treated lumber, ensuring a secure connection to the top and bottom plates. Toe-nailing, a technique where nails are driven at an angle, provides a strong hold. For added strength, consider using metal connectors, like joist hangers, to secure studs to the plates.
Pro Tip: When replacing studs, use a reciprocating saw to carefully cut out the old stud, minimizing damage to surrounding drywall or plaster.
Material Matters: Opt for pressure-treated lumber for studs in areas prone to moisture, like basements or exterior walls.
Beyond the Wall: Addressing the Root Cause
Wall straightening is often a symptom of a larger issue – foundation settlement. While bracing and securing walls provides immediate stability, it's crucial to address the underlying cause. Consult a structural engineer to determine if foundation repair, such as piering or underpinning, is necessary. Ignoring the root cause will only lead to recurring wall problems and potential safety hazards.
The Takeaway: A Level Head for a Level House
Wall straightening is a complex but essential step in leveling an old wood house. It demands a combination of technical skill, patience, and a deep understanding of structural principles. By carefully bracing, plumbing, and securing walls, you're not just fixing a cosmetic issue; you're restoring the structural integrity of your home, ensuring its safety and longevity for generations to come. Remember, when dealing with the skeleton of your house, precision and caution are paramount.
Jodie Wood's Age: Unveiling the Mystery Behind Her Timeless Charm
You may want to see also
Explore related products
Ceiling and Roof Alignment: Level ceiling joists, adjust roof supports, and fix sagging areas
Sagging ceilings and misaligned roofs are telltale signs of an old house settling unevenly. Left unaddressed, these issues can lead to structural damage, compromised insulation, and even safety hazards. Ceiling and roof alignment is a critical step in leveling an old house, requiring a methodical approach that addresses both the symptoms and the underlying causes.
Ceiling joists, often made of wood, bear the weight of the ceiling material and any fixtures attached to it. Over time, these joists can warp, shrink, or become damaged, leading to sagging. To level ceiling joists, start by identifying the low points. Use a laser level or a long straightedge to determine the extent of the sag. For minor sags, shimming the joists with wooden wedges or metal jacks can provide temporary relief. For more severe cases, sistering – attaching new joists alongside the existing ones – offers a more permanent solution. Ensure proper bracing and secure the new joists with appropriate fasteners.
Roof supports, including rafters and trusses, play a crucial role in maintaining the structural integrity of the house. Adjusting roof supports requires careful planning and execution. If the roof is sagging, it may be necessary to reinforce the existing supports or add new ones. This often involves installing additional posts or beams to redistribute the weight. Consult a structural engineer to determine the appropriate size and placement of these supports, ensuring they can bear the load safely. Remember, working on a roof is inherently dangerous, so prioritize safety by using proper fall protection equipment and working with a partner.
Fixing sagging areas often involves a combination of techniques. In some cases, installing steel I-beams or laminated veneer lumber (LVL) beams can provide the necessary support to lift and stabilize the sagging sections. For localized sags, jacking the area and shimming it into place can be effective. However, this method requires extreme caution to avoid causing further damage. Always work incrementally, monitoring for any signs of stress or movement in the structure.
Ceiling and roof alignment is a complex but essential aspect of leveling an old house. By addressing sagging joists, adjusting roof supports, and employing appropriate techniques to fix sagging areas, you can restore structural integrity, improve aesthetics, and ensure the long-term stability of your home. Remember, safety should always be the top priority when undertaking such projects. When in doubt, consult with qualified professionals to ensure the work is done correctly and safely.
Kamui Woods' Age: Unveiling the Mystery Behind the Hero's Years
You may want to see also
Frequently asked questions
Look for signs such as uneven floors, gaps in doors or windows, cracks in walls or ceilings, and doors that stick or don’t close properly. These are common indicators that the foundation or structure may have settled unevenly and requires leveling.
Common methods include pier and beam leveling (using jacks and shims), foundation underpinning (adding support beneath the foundation), or using screw jacks to lift and stabilize the structure. The best method depends on the house’s condition and the cause of the unevenness.
While minor adjustments like shimming floor joists can be DIY, leveling an entire house often requires professional expertise. Structural issues can be complex, and improper leveling can cause further damage. Consult a structural engineer or foundation specialist for safety and accuracy.
Costs vary widely based on the house’s size, the extent of the problem, and the method used. Minor repairs might cost a few hundred dollars, while extensive foundation work can range from $5,000 to $20,000 or more. Get multiple quotes from professionals for an accurate estimate.
