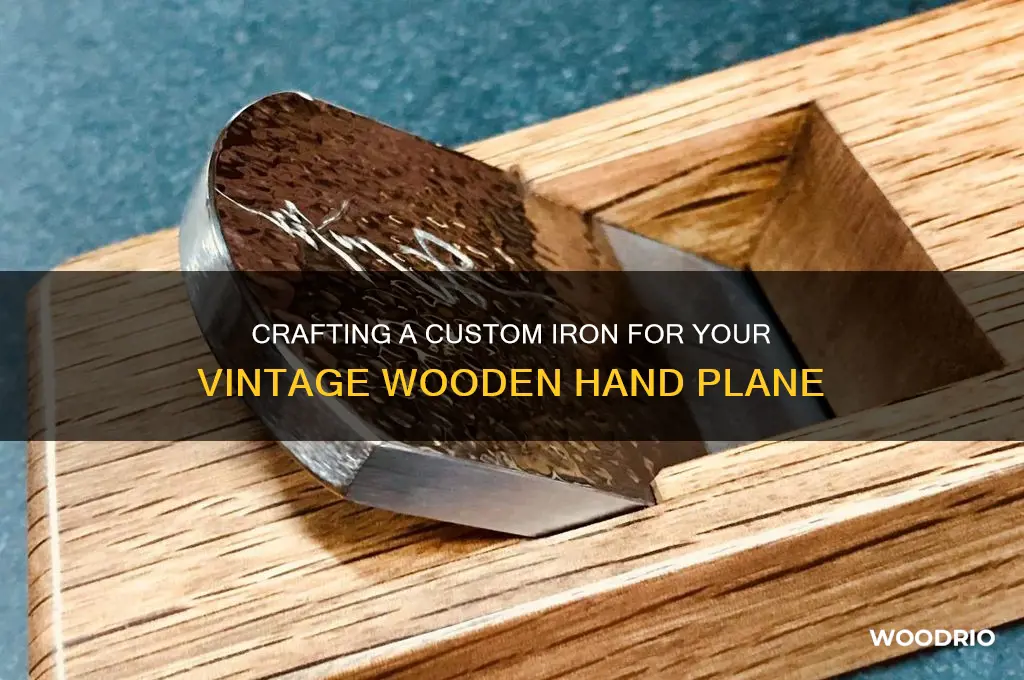

Crafting an iron for an old wooden plane is a rewarding endeavor that blends traditional woodworking skills with precision metalworking. The process begins with selecting the appropriate steel, typically high-carbon or A2 tool steel, which offers durability and sharpness. After cutting the steel to the desired size, it is carefully shaped using files, grinders, and sandpaper to match the profile of the plane’s mouth. The iron is then hardened through heat treatment, ensuring it retains a sharp edge, followed by tempering to reduce brittleness. Finally, the iron is sharpened to a fine edge and fitted into the wooden plane, restoring its functionality and preserving the craftsmanship of a bygone era. This meticulous process not only revives a vintage tool but also deepens one’s appreciation for the art of hand tool making.
| Characteristics | Values |
|---|---|
| Material | High-carbon steel (O1, A2, or similar tool steel) |
| Thickness | 1/8" to 3/16" (3-5 mm) |
| Width | Match the width of the original iron or plane mouth (typically 1.5" to 2.5" / 38-64 mm) |
| Length | 3" to 4" (75-100 mm) blade length, plus 1" to 2" (25-50 mm) for the tang |
| Hardening | Heat to cherry red (1500°F/815°C), quench in oil, temper to straw yellow (400°F/200°C) |
| Grind Angle | 25-30° primary bevel, 5-10° micro-bevel |
| Tang Design | Square or rectangular, 1/4" to 3/8" (6-10 mm) wide, 1" to 2" (25-50 mm) long |
| Securing Method | Wooden wedge (preferably hardwood like beech or oak) |
| Surface Finish | Polished cutting edge, matte or waxed body |
| Compatibility | Ensure tang dimensions match the plane's wedge slot |
| Tools Required | Angle grinder, belt sander, files, heat-treating equipment, vise |
| Safety | Heat-resistant gloves, eye protection, proper ventilation during hardening |
| Maintenance | Regular sharpening, rust prevention with oil or wax |
| Cost | $20-$50 (material + tools), depending on steel type |
| Time Estimate | 4-8 hours (including heat treatment and grinding) |
Explore related products
What You'll Learn
- Prepare the Iron Blank: Select appropriate steel, cut to size, and rough shape the iron profile
- Forge or Grind the Iron: Heat and shape or grind the iron to match the plane’s mouth
- Harden and Temper: Heat-treat the iron for durability, then temper for flexibility
- Flatten and Polish: Flatten the sole, polish the face, and sharpen the cutting edge
- Fit to the Plane: Adjust the iron’s thickness and secure it in the wooden plane body
Prepare the Iron Blank: Select appropriate steel, cut to size, and rough shape the iron profile
The foundation of a high-quality plane iron lies in the material itself. High-carbon steel (O1 or A2 tool steel) is the gold standard for plane irons due to its hardness, edge retention, and relative ease of sharpening. Avoid mild steel or stainless steel, as they lack the necessary hardness for effective woodcutting. While O1 is more forgiving for beginners, A2 offers superior wear resistance for demanding tasks. Consider your skill level and intended use when selecting the steel grade.
Once you've chosen your steel, precision cutting is paramount. Measure the width and length of your plane's iron slot, adding 1/8" to 1/4" to each dimension for shaping and final fitting. Use a metal cutting bandsaw or hacksaw for straight, accurate cuts. For thicker blanks, a plasma cutter or waterjet service may be necessary. Remember, it's easier to remove material than to add it back, so err on the side of slightly oversized dimensions.
With your blank cut to size, it's time to establish the rough profile. Mark the cutting edge bevel angle (typically 25-30 degrees) and the chipbreaker profile onto the blank using a permanent marker and a straightedge. Secure the blank in a vise and use an angle grinder with a metal cutting disc to remove the bulk of the material, leaving a generous margin around your marked lines. This stage prioritizes speed and material removal over precision.
Safety is crucial during rough shaping. Always wear eye protection, gloves, and a dust mask when grinding. Secure the workpiece firmly to prevent slipping, and maintain a controlled, steady hand. Avoid overheating the steel, which can compromise its hardness. Take frequent breaks to allow the metal to cool, and quench excessively hot areas with water if necessary. Remember, this stage is about creating a rough approximation of the final shape, not achieving a finished edge.
Sam Taylor-Wood's Marriage: Age and Life-Changing Decision Explored
You may want to see also
Explore related products
Forge or Grind the Iron: Heat and shape or grind the iron to match the plane’s mouth
The mouth of a wooden plane is its defining feature, dictating the tool's cutting action and finish. To craft an iron that complements this critical geometry, you must either forge or grind the iron to match. Forging involves heating the iron to a cherry-red glow (approximately 1,500°F or 815°C) and shaping it with a hammer on an anvil. This method allows for precise control over the iron's curvature and thickness, ensuring a seamless fit within the plane's mouth. Grinding, on the other hand, relies on abrasive wheels to remove material, offering a more forgiving approach for those less experienced with blacksmithing. Both methods demand patience and attention to detail, as even a slight mismatch can compromise the plane's performance.
Forging the iron is an art that marries heat with force. Begin by selecting a high-carbon steel blank, such as O1 or A2 tool steel, which retains its edge well under repeated use. Heat the iron in a forge until it reaches the desired temperature, then quench it in oil to harden the surface. Tempering follows, where the iron is reheated to a lower temperature (around 400°F or 204°C) to reduce brittleness. Once tempered, use a hammer and anvil to shape the iron, focusing on the bevel angle and overall profile. This process requires practice to master, as overheating can ruin the steel's properties, while insufficient heat makes shaping difficult. For beginners, starting with smaller irons and gradually working up to larger sizes can build confidence and skill.
Grinding offers a more accessible alternative, particularly for those without access to a forge. Start by clamping the iron in a vise and using a bench grinder fitted with a coarse wheel to remove excess material. Progress to a finer grit to refine the shape, ensuring the iron aligns perfectly with the plane's mouth. A belt sander can also be employed for more controlled material removal. The key is to work slowly, frequently checking the fit against the plane. Over-grinding is a common pitfall, so mark the desired dimensions beforehand and proceed with caution. While grinding lacks the romance of forging, it delivers consistent results with minimal specialized equipment.
Comparing the two methods reveals distinct advantages. Forging produces a stronger, more durable iron, as the heat treatment enhances the steel's molecular structure. It also allows for custom shaping, ideal for restoring antique planes with unique mouth profiles. Grinding, however, is quicker and requires less technical expertise, making it suitable for hobbyists or those on a tight schedule. Ultimately, the choice depends on your skill level, available tools, and the specific demands of the plane. Whichever path you choose, the goal remains the same: a perfectly matched iron that transforms the wooden plane into a precision cutting tool.
In practice, combining both techniques can yield the best results. For instance, forge the iron to achieve the initial shape and hardness, then grind for final adjustments and a polished finish. This hybrid approach leverages the strengths of each method, ensuring the iron fits flawlessly while maintaining its structural integrity. Regardless of your chosen technique, the satisfaction of crafting a custom iron for an old wooden plane lies in the harmony between tool and timber, a testament to both craftsmanship and tradition.
Discovering Brenda Woods' Age: A Comprehensive Look at Her Life
You may want to see also
Explore related products
Harden and Temper: Heat-treat the iron for durability, then temper for flexibility
Heat treatment is the alchemy that transforms a soft, dull iron into a cutting edge capable of slicing through wood with precision. This process, known as hardening and tempering, is a delicate dance between extreme heat and controlled cooling, pushing the metal to its limits to achieve both hardness and resilience. Imagine forging a samurai sword—the principle is similar, though the scale and tools differ. For a wooden plane iron, the goal is to create a blade that holds its edge without becoming brittle, ensuring longevity and performance.
The hardening phase begins by heating the iron to a specific temperature, typically between 1,450°F and 1,500°F (788°C to 816°C), depending on the carbon content of the steel. Use a propane torch or a forge for even heating, ensuring the entire blade reaches the critical temperature. A telltale sign of readiness is when the metal glows a bright cherry-red. Quench the iron swiftly in oil or water—oil is gentler, reducing the risk of cracking, while water cools faster, achieving maximum hardness. This rapid cooling rearranges the steel’s molecular structure, making it incredibly hard but also brittle, like glass.
Tempering is the antidote to brittleness, reintroducing flexibility without sacrificing too much hardness. After hardening, the iron is heated again, but to a much lower temperature, usually between 400°F and 600°F (204°C to 316°C). The exact temperature depends on the desired balance—lower for harder edges, higher for more flexibility. Hold the iron at this temperature for 15 to 30 minutes, then let it cool slowly in still air. This process relieves internal stresses and refines the grain structure, creating a blade that can withstand the rigors of planing without chipping or dulling prematurely.
Practical tips: Always wear heat-resistant gloves and safety goggles during heat treatment. Use a magnet to test the iron’s temperature—when it no longer attracts the magnet, it’s ready for quenching. For tempering, monitor the color of the iron; a straw-yellow hue indicates a temperature around 450°F (232°C), ideal for most plane irons. If you lack specialized equipment, a kitchen oven can be used for tempering, though precision is harder to achieve.
The result of proper hardening and tempering is a plane iron that glides through wood with minimal resistance, leaving a smooth, clean surface. It’s a transformation that bridges craftsmanship and science, turning raw material into a tool of precision. Master this process, and your wooden plane will become an extension of your skill, capable of shaping wood with the finesse of a master carpenter.
Tyler Wood's Age: Unveiling the Mystery Behind His Birth Year
You may want to see also
Explore related products
Flatten and Polish: Flatten the sole, polish the face, and sharpen the cutting edge
The sole of your wooden plane is its foundation, and any imperfections will translate directly to your workpiece. Flattening the sole is a meticulous process that demands patience and precision. Begin by securing the plane body in a vise, ensuring the sole faces upwards. Use a straightedge to identify high spots, then carefully remove material with a coarse-grit sandpaper (80-120 grit) until the sole sits flat on a reference surface, like a granite slab or a known-flat piece of glass. Progress to finer grits (220, 400, 600) to refine the surface, checking frequently with a straightedge or feeler gauges to ensure uniformity. This step is critical: a warped sole will produce uneven cuts, no matter how sharp your iron.
While the sole sets the stage, the face of the iron dictates the quality of the cut. Polishing the face reduces friction and tear-out, especially in figured woods. Start by cleaning the iron with a solvent to remove any oil or residue. Use progressively finer wet-or-dry sandpaper (starting at 400 grit, ending at 1200 or higher) with a flat sanding block to create a mirror finish. Work methodically, maintaining a consistent pressure and direction to avoid creating dips or scratches. A well-polished face not only improves performance but also makes future sharpening easier by reducing the buildup of wood fibers.
Sharpening the cutting edge is where the iron transforms from a dull blade to a precision tool. Begin by establishing a primary bevel at 25-30 degrees on a waterstone (e.g., 1000 grit), ensuring the angle is consistent across the entire edge. Follow this with a secondary bevel at 35-40 degrees using a finer stone (4000-8000 grit) to create a keen edge. For a wooden plane, a slightly steeper angle than metal planes is often preferred to reduce tear-out. Finish with a leather strop charged with honing compound to remove any burrs and achieve a razor-sharp edge. Test the edge by shaving a thin slice of end grain—if it curls effortlessly, your iron is ready.
Each of these steps—flattening, polishing, and sharpening—is interdependent. A flat sole ensures the iron cuts evenly, a polished face reduces friction, and a sharp edge ensures clean, precise cuts. Neglecting any one step compromises the entire process. For instance, a sharp but uneven sole will produce inconsistent results, while a flat sole with a dull iron will tear the wood. Approach this work with the mindset of a craftsman: slow, deliberate, and attentive to detail. The reward is a plane that performs as beautifully as it looks, capable of producing glass-smooth surfaces with ease.
Finally, maintenance is key to preserving your iron’s performance. After each use, clean the face and sole with a soft cloth to remove pitch and debris. Store the iron in a dry place, preferably with a light coat of oil to prevent rust. Periodically recheck the sole’s flatness and the edge’s sharpness, as wood movement and wear can alter these over time. By treating your iron as a living tool—one that requires care and adjustment—you ensure it remains a reliable companion in your woodworking journey.
Unveiling Paul Woods' Age: A Comprehensive Look at His Life
You may want to see also
Explore related products
Fit to the Plane: Adjust the iron’s thickness and secure it in the wooden plane body
The thickness of your iron is critical to the performance of your wooden plane. Too thin, and it’ll flex under pressure, leaving uneven surfaces. Too thick, and it won’t fit the mouth of the plane, rendering it useless. Start by measuring the original iron (if available) or the plane’s mouth opening. Aim for a thickness that matches the plane’s design era—older planes often used irons around 1/8 inch, while newer ones may be slightly thinner. Use a caliper for precision; even a 0.01-inch discrepancy can affect performance.
Once you’ve determined the ideal thickness, adjust the iron accordingly. If it’s too thick, grind it down gradually using a bench grinder or belt sander. Work in small increments, checking frequently to avoid over-thinning. For thinner irons, consider laminating a layer of high-carbon steel to the back, but this requires advanced welding skills. Alternatively, source a pre-cut iron of the correct thickness from specialty woodworking suppliers. Always prioritize material hardness—a Rockwell hardness of 60-62 is ideal for longevity and sharpness.
Securing the iron in the wooden plane body demands both precision and tradition. Begin by cleaning the plane’s throat and iron bed, removing any debris or old glue. Fit the iron loosely first, ensuring it aligns with the mouth without binding. Then, use a wooden wedge or screw mechanism (depending on the plane’s design) to hold the iron firmly. For wedge-style planes, apply a thin coat of hide glue to the wedge for added stability, but avoid modern adhesives that may damage the wood. Tighten screws evenly, using a torque wrench if available, to prevent warping the wooden body.
A common mistake is over-tightening, which can crack the wooden plane. Instead, aim for a snug fit that allows the iron to move slightly for fine-tuning. Test the setup by planing a scrap piece of wood, adjusting the iron’s protrusion as needed. Remember, the goal is to balance firmness with flexibility—the iron should hold its position under pressure but allow for micro-adjustments during use. With patience and attention to detail, your iron will become an extension of the plane, delivering smooth, consistent cuts.
Natalie Wood's Age in 1947: Uncovering the Child Star's Timeline
You may want to see also
Frequently asked questions
You will need high-carbon steel (such as O1 or A2 tool steel), a hacksaw or bandsaw, files, sandpaper, a drill, a grinder or belt sander, and a heat source (like a forge or propane torch) for hardening and tempering.
Measure the width and thickness of the plane’s mouth, then mark and cut the steel to size using a hacksaw or bandsaw. File and sand the edges to ensure a smooth fit, and bevel the cutting edge at a 25-30 degree angle for optimal performance.
Heat the iron to a bright cherry red (around 1500°F/815°C) in a forge or with a torch, then quench it in oil or water to harden it. Afterward, temper the iron by heating it to a straw or blue color (350-500°F/177-260°C) to reduce brittleness and improve durability.
Keep the iron clean and dry to prevent rust. Sharpen it regularly using a whetstone or diamond plate, maintaining the bevel angle. Periodically check the fit in the plane and adjust as needed to ensure smooth operation.
