Old wooden ships were meticulously constructed using traditional shipbuilding techniques that relied heavily on craftsmanship and natural materials. The process began with selecting durable hardwoods like oak, pine, or teak, which were shaped into various components such as planks, frames, and keels. Shipwrights employed tools like adzes, axes, and chisels to carve and fit the timber, ensuring precision and strength. The hull was assembled using a combination of mortise-and-tenon joints and wooden pegs, avoiding metal fasteners to prevent corrosion. Caulking, made from materials like oakum and pitch, sealed the seams between planks to make the ship watertight. Ribs and frames provided structural integrity, while the keel formed the backbone of the vessel. Masts, spars, and rigging were added later, crafted from carefully selected wood to withstand the stresses of sailing. This labor-intensive process required skilled artisans and often took years to complete, resulting in vessels that were both functional and works of art.
| Characteristics | Values |
|---|---|
| Materials | Primarily oak, pine, and other hardwoods for structural integrity and durability. |
| Construction Method | Shell-first construction (building the outer hull first) or skeleton-first construction (building the internal frame first). |
| Joinery Techniques | Pegged mortise and tenon joints, dovetail joints, and scarf joints for strong, flexible connections. |
| Fastenings | Wooden treenails (trunnels) and iron nails/bolts for securing planks and frames. |
| Hull Shape | Carvel-built (smooth planking edge-to-edge) or clinker-built (overlapping planks). |
| Waterproofing | Caulking with oakum (hemp fibers) and pitch/tar to seal gaps between planks. |
| Frame Structure | Ribs (frames) and keels provided structural support, often steam-bent for shape. |
| Masting and Rigging | Wooden masts, yards, and spars with hemp/manila rope for rigging. |
| Decking | Planked decks with camber (arch) for drainage, often covered with pitch or canvas. |
| Tools Used | Adzes, axes, chisels, saws, and augers, often handmade and specialized. |
| Design Evolution | Based on regional traditions, shipwright skills, and intended use (e.g., trade, warfare, exploration). |
| Preservation | Regular maintenance, including scraping, re-caulking, and re-painting to prevent rot and damage. |
| Historical Period | Techniques varied across civilizations (e.g., Viking longships, medieval cog ships, 18th-century warships). |
Explore related products
What You'll Learn
- Materials Selection: Oak, pine, and other durable woods were chosen for hulls, frames, and planks
- Frame Construction: Ribs and keels were assembled first, forming the ship's skeletal structure
- Planking Techniques: Overlapping planks were fastened to the frame, creating a watertight hull
- Joinery Methods: Wooden pegs, trunnels, and dovetail joints secured pieces without metal nails
- Sealing Processes: Pitch, tar, and animal fats were applied to seal seams and prevent leaks
Materials Selection: Oak, pine, and other durable woods were chosen for hulls, frames, and planks
The choice of wood in shipbuilding was a critical decision, one that could mean the difference between a vessel that withstood the test of time and one that succumbed to the elements. Oak, with its dense grain and natural resistance to decay, was the premier choice for shipwrights. Its strength and durability made it ideal for the hull, the backbone of the ship, where it could bear the brunt of waves and weather. For instance, the frames—the ribs of the ship—were often crafted from oak to provide structural integrity. This wood’s ability to resist rot, even when constantly exposed to saltwater, ensured that the ship remained seaworthy for decades.
Pine, while less dense than oak, played a complementary role in shipbuilding. Its lighter weight and ease of workability made it a preferred material for planks and decking. Shipwrights valued pine for its flexibility, which allowed it to bend and conform to the ship’s curves without splitting. Additionally, pine’s resinous nature provided a natural barrier against water infiltration, reducing the need for frequent maintenance. For example, the upper decks of many ships were constructed from pine to minimize weight while maintaining durability. This strategic use of pine ensured that the ship remained agile and responsive, even as it carried heavy cargo or navigated rough seas.
Beyond oak and pine, shipbuilders often turned to other durable woods to meet specific needs. Teak, prized for its exceptional resistance to termites and fungi, was used for decking and interior fittings. Its natural oils made it virtually impervious to water, ensuring longevity in harsh marine environments. Similarly, cedar, with its lightweight yet sturdy properties, was employed for masts and spars, where strength and flexibility were paramount. Each wood was selected not just for its physical properties but also for its availability and cost, as shipbuilding required vast quantities of material.
The selection of wood was as much an art as it was a science. Shipwrights had to consider factors like grain direction, knot placement, and seasoning to ensure the wood performed as expected. For instance, oak planks were often split along the grain rather than sawn to preserve their natural strength. This meticulous approach to materials selection underscores the craftsmanship behind old wooden ships. By choosing the right wood for each component, builders created vessels that were not only functional but also enduring symbols of maritime ingenuity.
In practice, modern enthusiasts and restorers can draw lessons from these historical choices. When rebuilding or maintaining wooden ships today, prioritize oak for structural elements like keels and frames, ensuring they are sourced from mature trees for maximum density. Pine remains an excellent choice for planking and decking, but ensure it is properly treated to enhance its natural water resistance. For specialty components, such as decorative carvings or exposed fittings, consider teak or cedar for their aesthetic appeal and durability. By adhering to these time-tested material selections, today’s shipbuilders can honor the legacy of their predecessors while crafting vessels capable of standing the test of time.
Viburnum Blooming Secrets: Old Wood vs. New Wood Explained
You may want to see also
Explore related products

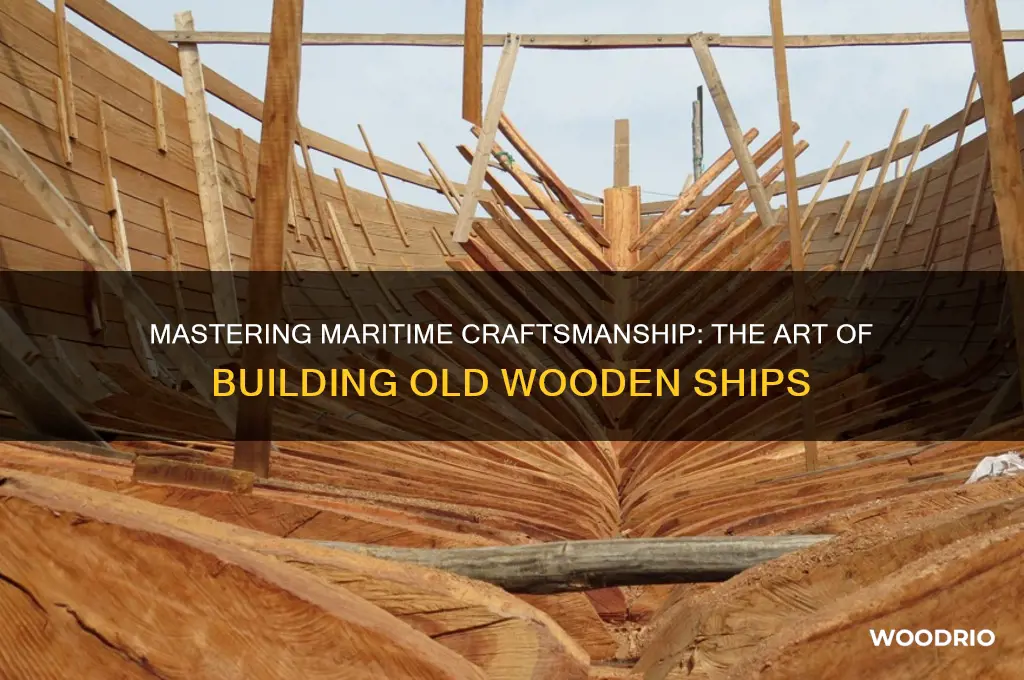

Frame Construction: Ribs and keels were assembled first, forming the ship's skeletal structure
The backbone of any wooden ship lies in its frame construction, a meticulous process that begins with the assembly of ribs and keels. These elements form the skeletal structure, much like the spine and ribs of a living creature, providing the ship with its shape, strength, and integrity. Historically, shipwrights would start by laying down the keel, a central timber running the length of the vessel, which acts as the foundation. This was often a single, massive piece of wood, carefully selected for its straightness and durability. Once the keel was in place, the ribs, or frames, were erected perpendicular to it, creating the ship’s cross-sectional shape. This method ensured that the ship’s structure was robust enough to withstand the stresses of the sea.
Consider the process as a blueprint for success. The keel serves as the baseline, dictating the ship’s length and direction, while the ribs define its width and curvature. Shipwrights would often use templates or molds to ensure uniformity in the rib shapes, a practice that required precision and skill. For instance, in the construction of Viking longships, the ribs were steam-bent to achieve the desired curve, a technique that allowed for both flexibility and strength. This step-by-step approach not only ensured structural integrity but also allowed for customization, as each ship could be tailored to its intended purpose—whether for trade, warfare, or exploration.
One of the most fascinating aspects of frame construction is its reliance on natural materials and traditional craftsmanship. Unlike modern shipbuilding, which often involves prefabricated parts and machinery, old wooden ships were built by hand, with each piece carefully fitted and secured. The joints between the keel and ribs, for example, were often reinforced with wooden pegs or treenails, avoiding the use of metal to prevent corrosion. This method, while time-consuming, resulted in ships that were not only functional but also works of art. The *Mary Rose*, a 16th-century English warship, is a testament to this craftsmanship, with its frame still remarkably intact despite centuries underwater.
Practical tips for understanding this process include studying historical ship plans or visiting maritime museums, where you can see skeletal models or preserved vessels. For enthusiasts looking to replicate these techniques, start small—build a model ship using similar principles. Focus on selecting the right wood, such as oak for the keel and ribs, due to its strength and resistance to rot. Experiment with traditional tools like adzes and drawknives to shape the timbers, and practice joining techniques like scarfing or dovetailing. While modern tools can expedite the process, adhering to historical methods provides a deeper appreciation for the skill and ingenuity of ancient shipwrights.
In conclusion, frame construction was the cornerstone of old wooden shipbuilding, a process that demanded precision, creativity, and respect for natural materials. By assembling ribs and keels first, shipwrights laid the groundwork for vessels that could navigate the world’s oceans with reliability and grace. This method not only ensured structural soundness but also allowed for the creation of ships that were uniquely suited to their roles. Whether you’re a historian, a craftsman, or simply a lover of the sea, understanding this foundational step offers valuable insights into the art and science of shipbuilding.
Exploring David Flint Wood's Age: Unveiling the Mystery Behind His Years
You may want to see also
Explore related products
Planking Techniques: Overlapping planks were fastened to the frame, creating a watertight hull
The hull of a wooden ship was its lifeline, and the planking technique was a critical aspect of its construction. Overlapping planks, also known as "clinker-built" or "lapstrake" construction, were a common method used in ancient shipbuilding. This technique involved fastening wooden planks to the ship's frame in a way that created a watertight seal, ensuring the vessel's buoyancy and stability. The process began with selecting the right type of wood, typically oak or pine, which was then cut into planks of varying widths and lengths.
The Art of Overlapping Planks
Imagine a jigsaw puzzle, where each piece is carefully crafted to fit seamlessly with its neighbors. This is akin to the precision required in overlapping planking. The planks were shaped and beveled to create a smooth, continuous surface, with each plank overlapping the one below it. This overlap, often around 3-4 inches, was crucial in preventing water ingress. The planks were then fastened to the frame using a combination of wooden pegs, known as treenails, and iron nails. The treenails, typically made from hardwoods like locust or oak, were preferred for their flexibility and resistance to corrosion.
A Step-by-Step Guide to Planking
- Preparation: The ship's frame, consisting of ribs and keel, was erected first. The planks were then measured, cut, and shaped to fit the curvature of the hull.
- Laying the Planks: Starting from the keel, the first plank was fastened to the frame. Subsequent planks were then laid, overlapping the previous one, and fastened using treenails and nails.
- Caulking: To ensure a watertight seal, a process called caulking was employed. This involved hammering a fibrous material, such as oakum (hemp fiber), into the seams between the planks. The oakum was then sealed with a mixture of pitch and tallow, creating a flexible, waterproof barrier.
The Science Behind Watertight Hulls
The effectiveness of overlapping planking lies in its ability to distribute stress and strain across the hull. As the ship moves through the water, the planks work together, sharing the load and preventing any single point from bearing excessive pressure. This design also allows for some flexibility, enabling the hull to withstand the forces of waves and wind without compromising its integrity. A well-built, watertight hull could last for decades, with some Viking longships known to have sailed for over 100 years.
Practical Considerations
When attempting to replicate this technique, it's essential to consider the type of wood, grain direction, and moisture content. Green wood, for instance, is more flexible and easier to shape but requires careful drying to prevent warping. Additionally, the use of modern adhesives, such as epoxy resins, can complement traditional fastening methods, providing added strength and durability. However, it's crucial to strike a balance between preserving historical accuracy and incorporating contemporary materials and techniques. By understanding the principles of overlapping planking, shipbuilders can create vessels that not only honor the past but also meet the demands of modern maritime environments.
Unveiling Leonard Wood's Age: A Historical Figure's Lifespan Explored
You may want to see also
Explore related products
Joinery Methods: Wooden pegs, trunnels, and dovetail joints secured pieces without metal nails
Wooden ships of old were marvels of craftsmanship, relying on joinery methods that avoided metal nails to ensure flexibility and longevity. Among these techniques, wooden pegs, trunnels, and dovetail joints were pivotal. These methods not only secured pieces tightly but also allowed the wood to expand and contract with environmental changes, a critical feature for vessels enduring the stresses of open water.
Wooden Pegs and Trunnels: The Unseen Anchors
Pegs and trunnels (treenails) were the workhorses of ship joinery. Crafted from hardwoods like oak or locust, these cylindrical dowels were driven through aligned holes in planks or frames. Their installation required precision: holes were slightly smaller than the pegs, ensuring a tight fit as the wood swelled with moisture. Trunnels, often larger and tapered, were used for heavier structural connections, such as joining frames to keels. The absence of metal prevented corrosion and maintained the wood’s integrity, a lesson modern builders still heed in humid or saltwater environments.
Dovetail Joints: Elegance in Strength
Dovetail joints, though less common than pegs, were employed in areas demanding both strength and aesthetics, such as cabinetry or decorative elements. This interlocking joint, with its trapezoidal pins and tails, resists pulling forces without adhesives or fasteners. Its use in ships showcased the shipwright’s skill, balancing functionality with artistry. While not as prevalent as pegged joints, dovetails highlight the versatility of wood joinery in maritime construction.
Practical Tips for Modern Applications
For those replicating traditional methods, select pegs and trunnels from dense, rot-resistant woods like white oak. Pre-soak pegs in water to minimize shrinkage post-installation. When cutting dovetail joints, use a sharp chisel and mallet, ensuring a precise fit without forcing the pieces together. Avoid metal tools that could leave marks; instead, opt for traditional hand tools to maintain authenticity.
Comparative Advantage: Why These Methods Endure
Unlike metal nails, which rust and weaken over time, wooden joinery adapts to the material’s natural behavior. Pegs and trunnels distribute stress evenly, reducing the risk of splitting. Dovetail joints, while labor-intensive, provide unparalleled durability in specific applications. These methods exemplify the principle of working *with* the material, not against it—a philosophy as relevant today as it was centuries ago.
By mastering these techniques, craftsmen—whether building a model ship or restoring a historic vessel—honor the ingenuity of their predecessors while ensuring their work withstands the test of time.
Easy Wood Repair: Filling Old Screw Holes in Wood
You may want to see also
Explore related products
Sealing Processes: Pitch, tar, and animal fats were applied to seal seams and prevent leaks
The integrity of a wooden ship’s hull depended heavily on its ability to repel water, a task achieved through meticulous sealing processes. Pitch, tar, and animal fats were the primary materials used to seal seams, caulk gaps, and waterproof the vessel. These substances, derived from natural sources, were chosen for their adhesive, flexible, and water-resistant properties. Pitch, a viscous liquid obtained from pine trees, was heated and applied hot to penetrate wood fibers and harden into a durable barrier. Tar, derived from coal or wood, was similarly heated and brushed into seams, providing a sticky, protective layer that expanded and contracted with the wood. Animal fats, such as tallow or lard, were used in colder climates for their ability to remain pliable at low temperatures, ensuring seals didn’t crack under stress.
Applying these materials was a labor-intensive process requiring skill and precision. Caulking, for instance, involved driving oakum (hemp fibers) into the seams between planks, then covering it with hot pitch or tar using a caulking iron. This technique created a watertight seal that could withstand the constant movement and pressure of the sea. For larger gaps or critical areas like the keel, multiple layers of pitch and canvas were applied, forming a composite barrier known as "pudding." Animal fats were often mixed with other substances, such as lime or resin, to enhance their adhesive and water-resistant qualities. The timing and temperature of application were crucial; too hot, and the wood could scorch; too cold, and the sealant wouldn’t adhere properly.
Comparing these methods to modern waterproofing techniques highlights both their ingenuity and limitations. While synthetic sealants like epoxy resins offer superior durability and ease of use, traditional materials had the advantage of being readily available and repairable at sea. A ship’s crew could carry pitch or tar in casks and reapply it as needed, a practicality unmatched by today’s specialized compounds. However, natural sealants required frequent maintenance, as they degraded over time due to saltwater, UV exposure, and biological growth. This constant upkeep was a defining feature of wooden shipbuilding, shaping the rhythms of maritime life.
For those interested in replicating these techniques today, sourcing materials is the first challenge. Pure pine pitch can be purchased from woodworking suppliers or extracted through distillation of pine sap. Coal tar is available in marine supply stores, though its use is often restricted due to environmental concerns. Animal fats can be rendered at home or bought from butchers, though modern alternatives like linseed oil mixed with pine resin offer a less perishable option. When applying, heat pitch or tar to 150–200°C (300–400°F) for optimal penetration, and use a brush or spatula to ensure even coverage. For caulking, oakum can be substituted with modern fibers like jute or cotton, though traditionalists may prefer the historical accuracy of hemp.
The takeaway from these sealing processes is their role in bridging the gap between wood and water, transforming a collection of planks into a seaworthy vessel. While the materials and methods may seem primitive by today’s standards, their effectiveness is undeniable, as evidenced by the centuries-long dominance of wooden ships. Understanding these techniques not only preserves maritime history but also offers insights into sustainable, resource-driven problem-solving—a lesson as relevant today as it was in the age of sail.
Honeysuckle Vine Growth: Does It Thrive on Old Wood?
You may want to see also
Frequently asked questions
Old wooden ships were primarily built using durable hardwoods like oak for the frame and hull due to their strength and resistance to decay. Softwoods such as pine were often used for decking, masts, and other less structural components. Iron or copper fasteners, along with natural fibers like hemp for rigging, were also essential materials.
Wooden planks were joined using a technique called "clinker" or "carvel" construction. In clinker construction, planks overlapped each other, while in carvel construction, planks were butted edge-to-edge. Caulking, a process where fibers or oakum were hammered into the seams and sealed with tar or pitch, ensured the hull was watertight.
Shipbuilders used hand tools like adzes, axes, and chisels to shape wooden components. Templates and molds were employed to ensure uniformity in parts like ribs and planks. Large timbers were often bent using steam or heat to achieve the desired curvature for the hull. Skilled craftsmanship and precise measurements were critical to the ship's structural integrity.
