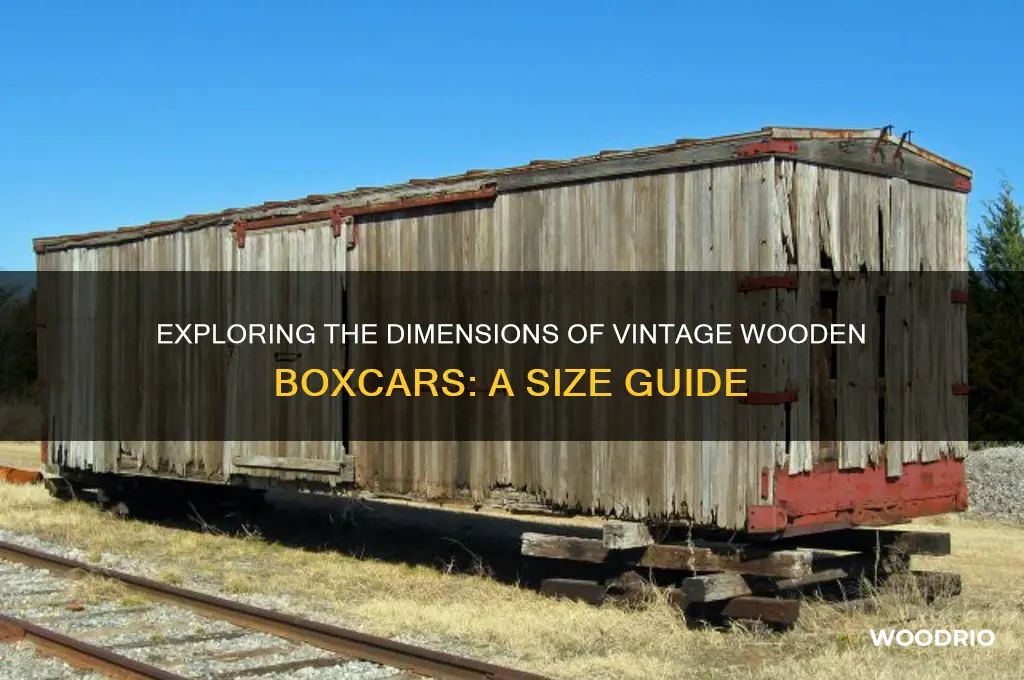

The size of an old wooden boxcar can vary significantly depending on its origin, purpose, and era of construction. Typically, standard North American railroad boxcars from the early to mid-20th century measured around 40 to 50 feet in length, 9 to 10 feet in width, and 10 to 12 feet in height, with an interior capacity of approximately 3,000 to 4,000 cubic feet. European boxcars, often narrower and shorter, might range from 30 to 40 feet in length and 8 to 9 feet in width. These dimensions were influenced by track gauge standards, cargo requirements, and manufacturing practices of the time, making each boxcar a unique artifact of industrial history.
Explore related products
What You'll Learn
- Historical Boxcar Dimensions: Standard sizes of wooden boxcars used in early 20th-century rail transport
- Material Impact on Size: How wood type and construction methods influenced boxcar dimensions
- Load Capacity Variations: Relationship between boxcar size and cargo capacity in old designs
- Regional Size Differences: Variations in boxcar dimensions across different countries or railroads
- Preservation and Restoration: Challenges in maintaining original size during restoration of old wooden boxcars
Historical Boxcar Dimensions: Standard sizes of wooden boxcars used in early 20th-century rail transport
Wooden boxcars of the early 20th century were workhorses of rail transport, designed for versatility and durability. Standard dimensions emerged to balance cargo capacity with operational efficiency. A typical boxcar from this era measured approximately 40 feet in length, 9 feet in width, and 10 feet in height, providing an interior volume of around 3,600 cubic feet. These dimensions were not arbitrary; they were optimized to fit the gauge of railway tracks and the loading capacities of contemporary locomotives. The 40-foot length, for instance, became a benchmark that influenced later railcar designs, including modern freight cars.
The design of these boxcars reflected the practical needs of the time. Doors, typically sliding or plug-style, were positioned to allow for efficient loading and unloading of goods. A standard boxcar could carry up to 50 tons of freight, though this varied depending on the type of cargo and the specific design of the car. For example, boxcars used for bulkier goods like lumber or machinery often had reinforced floors and walls to handle heavier loads. The interior was usually open, with wooden slats or panels to secure cargo, though some specialized boxcars included interior shelving or compartments for smaller items.
Comparing these dimensions to modern freight cars highlights the evolution of rail transport. Today’s boxcars are often 60 feet or longer, with increased height and width to accommodate larger, standardized shipping containers. However, the early 20th-century boxcar’s 40-foot length remains a foundational standard, influencing the design of flatcars and intermodal transport systems. This continuity underscores the ingenuity of early rail engineers, who prioritized functionality and adaptability in their designs.
For enthusiasts or historians seeking to replicate or study these boxcars, understanding their dimensions is crucial. Models or restorations should adhere to the 40x9x10-foot standard to maintain historical accuracy. Additionally, examining blueprints or photographs from the era can provide insights into variations, such as boxcars with extended roofs for oversized cargo or those with additional ventilation for perishable goods. By preserving these dimensions, we not only honor the legacy of early rail transport but also gain a deeper appreciation for the engineering principles that shaped modern logistics.
Can Salvia Thrive on Old Wood? Gardening Tips and Insights
You may want to see also
Explore related products
Material Impact on Size: How wood type and construction methods influenced boxcar dimensions
The choice of wood species significantly influenced the size and durability of old wooden boxcars. Hardwoods like oak and hickory, prized for their strength and resistance to decay, allowed for thinner wall planks and structural members, maximizing interior cargo space. Softer woods such as pine or fir, while more abundant and affordable, required thicker cuts to achieve comparable structural integrity, resulting in slightly reduced interior dimensions. This material trade-off between strength and availability directly impacted the external footprint and internal capacity of boxcars, with hardwood variants often boasting sleeker profiles despite their robust construction.
Construction methods further refined the relationship between wood type and boxcar size. Early boxcars employed mortise-and-tenon joints, dovetailing, and wooden pegs, techniques that demanded precise craftsmanship but added bulk to structural connections. The advent of metal fasteners in the late 19th century revolutionized assembly, enabling tighter joints and more efficient use of wood. This shift allowed even softer woods to be used in thinner sections without compromising stability, subtly altering boxcar dimensions by reducing the material needed for bracing and framing.
Consider the example of a standard 1920s boxcar: those built with oak and steel fasteners typically measured 38 feet in length with interior widths of 8.5 feet, while pine counterparts often required an additional inch of wall thickness, narrowing the interior slightly. This difference, though minor, illustrates how material properties and construction techniques collectively dictated size constraints. Builders had to balance wood availability, labor costs, and desired cargo capacity, often tailoring designs to regional timber resources and technological capabilities.
To replicate or restore an old wooden boxcar accurately, start by researching the era and region of origin to identify typical wood species and construction methods. For instance, a midwestern boxcar from the 1890s might feature white oak with wooden peg joints, while a Pacific Northwest variant from the 1910s could utilize Douglas fir with steel bolts. Measurements should account for the wood’s shrinkage over time; untreated hardwoods can lose up to 1/8 inch per decade in thickness. Always prioritize structural integrity over exact historical dimensions, especially if the replica will bear weight or environmental stress.
Finally, the interplay of wood type and construction methods underscores a broader principle: material constraints are not limitations but design parameters. Early boxcar engineers leveraged the unique properties of available woods, adapting joinery and fastening techniques to create functional, durable vehicles within the bounds of their resources. This historical approach offers a lesson in sustainability and ingenuity, reminding modern builders that material choices and construction methods remain inseparable from the final form and function of any structure.
Revive Your Old Wood Dresser: Simple Steps for a Fresh Look
You may want to see also
Explore related products
Load Capacity Variations: Relationship between boxcar size and cargo capacity in old designs
Old wooden boxcars, staples of early rail freight, exhibited significant load capacity variations directly tied to their dimensions. A typical 19th-century boxcar measured around 30 feet in length, 8 feet in width, and 9 feet in height, yielding approximately 2,160 cubic feet of interior space. However, this standard was far from universal. Smaller boxcars, some as short as 24 feet, were common in regional operations, while larger 36-foot models emerged in the early 20th century to accommodate growing cargo demands. These size discrepancies translated to load capacity differences of up to 50%, with larger boxcars often carrying 50,000 to 60,000 pounds compared to the 30,000 to 40,000 pounds of their smaller counterparts.
The relationship between boxcar size and cargo capacity wasn’t linear due to structural limitations. Wooden boxcars relied on timber framing and metal bracing, which imposed weight restrictions to prevent structural failure. For instance, a 36-foot boxcar with a 60,000-pound capacity might have a floor thickness of 3 inches, while a 24-foot car with a 30,000-pound limit could use 2-inch flooring. This balance between size and material strength meant that simply scaling up dimensions didn’t always yield proportional capacity increases. Engineers had to carefully calculate load distribution and structural integrity, often limiting the practical capacity of larger designs.
Practical considerations further complicated the size-capacity relationship. Smaller boxcars were favored for perishable goods like produce, as their reduced volume minimized air circulation and temperature fluctuations. Larger boxcars, on the other hand, were ideal for bulkier, non-perishable cargo such as coal or lumber. For example, a 30-foot boxcar could carry 200 bales of cotton, while a 36-foot car might hold 250 bales, but the latter required more robust handling equipment to manage its increased weight. This specialization highlights how cargo type influenced boxcar design and capacity utilization.
To maximize load capacity, operators often employed strategies like interior bracing and dunnage. In a 30-foot boxcar, wooden slats could be installed to secure fragile cargo, effectively reducing usable space but preventing damage. Similarly, larger boxcars sometimes featured removable partitions to accommodate mixed freight. However, these modifications added weight, reducing net capacity by up to 10%. Operators had to weigh the benefits of customization against the loss of raw carrying potential, underscoring the delicate trade-offs in old boxcar design.
In conclusion, the load capacity of old wooden boxcars was a dynamic interplay of size, structural constraints, and operational needs. While larger boxcars offered greater volume, their capacity gains were tempered by material limits and handling challenges. Smaller designs, though less voluminous, provided flexibility for specialized cargo. Understanding these variations offers insights into the ingenuity of early rail freight systems and the compromises inherent in their design. For enthusiasts or historians, examining these relationships reveals how form and function converged in the evolution of boxcar technology.
Sam Alexis Woods Age: Unveiling the Mystery of Her Birth Year
You may want to see also
Explore related products
Regional Size Differences: Variations in boxcar dimensions across different countries or railroads
The dimensions of old wooden boxcars reveal a fascinating tapestry of regional variations, shaped by the unique needs and constraints of different railroads and countries. In North America, for example, standard boxcars typically measured around 30 to 40 feet in length, 8 to 9 feet in width, and 10 to 12 feet in height. These dimensions were optimized for the continent’s extensive rail network, balancing cargo capacity with operational efficiency. However, this was not a universal standard.
In Europe, boxcars often exhibited narrower profiles due to the region’s tighter rail corridors and smaller loading gauges. A typical European boxcar might measure 25 to 30 feet in length, 7 to 8 feet in width, and 9 to 10 feet in height. This compact design reflected the need to navigate narrower tracks and smaller tunnels, a legacy of Europe’s older and more densely packed rail infrastructure. Such variations highlight how geography and engineering traditions influenced boxcar design.
Asia presents another distinct case, particularly in countries like Japan, where boxcars were even smaller to accommodate the region’s unique rail specifications. Japanese boxcars often measured around 20 to 25 feet in length, 7 to 8 feet in width, and 8 to 9 feet in height. These dimensions were tailored to Japan’s narrow-gauge railways, which prioritized efficiency in a densely populated and geographically challenging environment. The emphasis on smaller, more maneuverable boxcars underscores the adaptability of rail transport to local conditions.
Understanding these regional differences is crucial for historians, model railroad enthusiasts, and anyone restoring vintage boxcars. For instance, if you’re recreating a European boxcar, ensure your dimensions align with the narrower European standards rather than the broader North American ones. Similarly, when studying the evolution of rail transport, these variations provide insights into how railroads evolved in response to their environments. By examining these regional size differences, we gain a deeper appreciation for the ingenuity and diversity of boxcar design across the globe.
Repairing Old Wood Windows: A Step-by-Step Guide to Replacing Broken Glass
You may want to see also
Explore related products
Preservation and Restoration: Challenges in maintaining original size during restoration of old wooden boxcars
Old wooden boxcars, typically measuring around 30 to 40 feet in length, 8 to 9 feet in width, and 10 to 12 feet in height, were workhorses of the rail system in the late 19th and early 20th centuries. Restoring these relics to their original dimensions is fraught with challenges, from material degradation to the scarcity of period-accurate blueprints. Preservationists often face a dilemma: how to honor historical accuracy while addressing structural weaknesses that threaten the very integrity of the boxcar.
Step 1: Assess the Original Blueprint
Begin by sourcing or recreating the original design specifications. Many boxcars were built to standardized dimensions, such as the 36-foot length common in the 1920s, but variations existed based on manufacturer and purpose. Cross-reference multiple sources, including archival photographs, railroad company records, and surviving examples, to verify measurements. Caution: Relying solely on visual estimates can lead to inaccuracies, as warping and wear distort the boxcar’s original form.
Challenge: Material Shrinkage and Warping
Wood, the primary material of these boxcars, shrinks, warps, and rots over time due to moisture, pests, and temperature fluctuations. Restorers must decide whether to replace severely damaged planks entirely or use techniques like steam bending to reshape warped wood. Persuasive argument: While replacing wood ensures structural stability, it risks losing the patina of age that tells the boxcar’s story. A compromise might involve using new wood for load-bearing sections while preserving original planks in less critical areas.
Comparative Analysis: Modern Tools vs. Historical Techniques
Modern tools, such as laser cutters and CNC machines, can replicate original dimensions with precision, but they often lack the character of hand-crafted joinery. Historical techniques, like mortise-and-tenon joints or pegged construction, are labor-intensive but maintain authenticity. Practical tip: Combine both approaches by using modern tools for repetitive tasks (e.g., cutting straight planks) and traditional methods for intricate details (e.g., dovetail joints).
Descriptive Insight: The Role of Metal Fittings
Metal components, such as braces, hinges, and wheel assemblies, often dictate the boxcar’s structural integrity. Corrosion and metal fatigue can alter the original dimensions, requiring careful restoration or replication. For example, a rusted steel frame might need to be sandblasted and reinforced, but this process can slightly alter its size. Restorers must balance preserving the original material with ensuring safety and functionality.
Takeaway: Prioritize Functionality Without Sacrificing Authenticity
Maintaining the original size of an old wooden boxcar requires a meticulous blend of research, craftsmanship, and compromise. While purists may advocate for absolute historical accuracy, practical considerations—such as safety and material availability—often necessitate adaptations. By documenting every decision and using reversible techniques where possible, restorers can honor the boxcar’s legacy while ensuring its survival for future generations.
Reviving Warped Wood: Expert Tips to Restore Old Pews
You may want to see also
Frequently asked questions
The typical dimensions of an old wooden boxcar are around 40 to 50 feet in length, 9 to 10 feet in width, and 12 to 14 feet in height.
An old wooden boxcar could typically hold between 50,000 to 70,000 pounds (25 to 35 tons) of cargo, depending on its design and load capacity.
The standard gauge for the wheels of an old wooden boxcar was 4 feet 8.5 inches (1,435 mm), which is the same as modern railroad tracks.
